1. Quick Reference Electrical Specification Matrix

All ratings apply to North American standard single-phase residential electrical service (240V, 2-wire + equipment ground).

Table 1: 240V Single-Phase Specifications

\Note on PC80 Breaker: NEC 125% continuous duty rule (33.4 A × 1.25 = 41.75 A) requires a 50A breaker in strict inspection jurisdictions.*

2. Critical Electrician Directives & Code Mandates

A. Supply Conductor Standards & Conduit Whip

• Conductor Material: Copper only (minimum 90°C THHN/THWN rating).
• Conduit Rough-In: Terminate wiring using flexible liquid-tight or metallic conduit into the knockout on the lower chassis side/bottom. Ensure sufficient whip slack to allow servicing and floor cleaning.
• Neutral Conductor: No neutral wire is connected to the heater. Operating voltage across heating elements is straight 240V (L1, L2, and equipment ground).

B. GFCI Breaker Policy

• Manufacturer Recommendation: Connect to a dedicated standard 2-pole thermal-magnetic breaker without GFCI. Standard Class A GFCI breakers (4–6 mA) are prone to nuisance tripping during startup due to minor atmospheric moisture absorption in the heating elements, which evaporates within 1 hour of heating.

3. Clearances & Spatial Layout (Safety Distances)

Table 2: Minimum Safety Clearances to Combustibles

4. Floor Mounting & Sauna Kit Timber Construction

The loaded weight of the Cilindro pillar with 240 lbs of stones is ~275 lbs (125 kg).

A. Pre-Fabricated Solid Timber Sauna Kits (Dundalk Leisurecraft & SaunaLife)

B. Bench Embedding Cutouts

• If recessing the Cilindro tower through lower or upper sauna benches:
• Cut the opening to allow the required 4-inch perimeter clearance.
• Use the official Harvia Stainless Steel Embedding Flange (HPC2) to neatly trim and fire-protect the bench opening.

5. Control Wiring: Dials vs. Digital Xenio

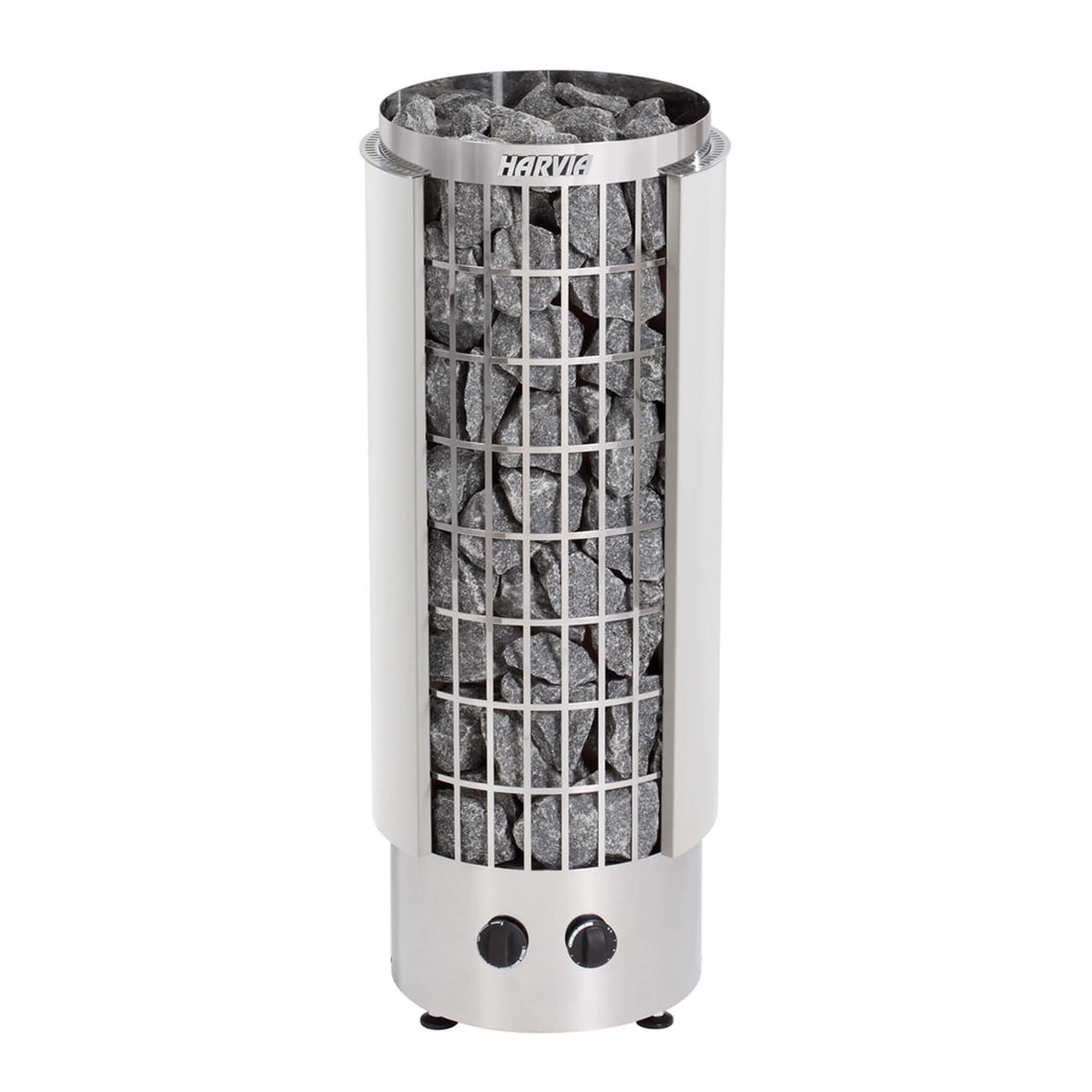

Variant 1: Mechanical Dials (PC60 / PC80 / PC90)

• 240V supply connects directly to terminal block in the lower electrical compartment.
• Temperature and timer dials are mounted on the base of the pillar.

 [Main Service Distribution Panel]
    240V 2-Pole Breaker (30A / 40A / 50A)
               |
               v (Line In: 2 Hots + Ground, Copper 90°C)
 [Cilindro Lower Base Terminal Chamber]
  - Terminal L1: Hot Line 1
  - Terminal L2: Hot Line 2 (No neutral connected)
  - Ground Lug: Equipment Grounding Conductor
               |
               v
 [Integrated Thermostat & 60-Minute Timer Mechanism]
               |
               v
 [Stainless Steel Tower Heating Elements]

Variant 2: Digital External Control (PC60E / PC80E / PC90E / PC110E)

• 240V supply feeds the external Harvia Xenio CX170 Power Unit.
• Load conductors route from Xenio to heater terminal compartment.
• Low-voltage data cable links the wall touchscreen, and temperature sensor mounts to ceiling above the heater.

 [Main Service Distribution Panel]
    240V 2-Pole Breaker (30A / 40A / 50A)
               |
               v (Line In: 2 Hots + Ground, Copper 90°C)
 [Harvia Xenio CX170 Power Unit] <==== (Low-Voltage Sensor Wire) ====> [Temperature Sensor w/ Thermal Fuse]
               |                                                        (Over heater ceiling per manual)
               |
               +==== (Data Cable) ====> [Xenio Wall Touchpad / Mobile WiFi]
               |                        (Mounted outside sauna room)
               v (Load Out: Terminals U, V + Ground)
 [Cilindro Pillar Terminal Chamber]
  - Terminal U: Line 1
  - Terminal V: Line 2
  - Ground Lug: Equipment Grounding Conductor

6. Sizing Formula & Sauna Kit Verification

• Formula: Room Volume (cu. ft.) + (3.3 cu. ft. × Sq. Ft. Uninsulated Glass/Tile).
• Kit Compatibility:
• Cilindro PC60 (141–294 cu. ft.): 4-person indoor saunas or 6'×6' outdoor barrels.
• Cilindro PC80 / PC90 (141–494 cu. ft.): Sized for 6-person barrels (Tranquility, Serenity) and cabin saunas (Georgian Cabin). The high stone volume (240 lbs) delivers exceptional soft steam (löyly) even when outdoor winter air is cold.

8. Official Manual Audit & Compliance Verification
