1. Quick Reference Electrical Specification Matrix

All ratings apply to North American standard single-phase residential electrical service (240V, 2-wire + equipment ground).

Table 1: 240V Single-Phase Specifications

\Note on KIP-80 Breaker: NEC continuous duty load calculation requires 33.3 A × 1.25 = 41.6 A. In jurisdictions enforcing strict 125% rounding, install a 50A breaker with 8 AWG (or 6 AWG if long run).*

2. Critical Electrician Directives & Wiring Codes

A. Supply Wire Type & Temperature Rating

• Conductor Type: Strictly copper conductors only. Aluminum wiring is not permitted.
• Temperature Rating: Wiring routed into the heater junction cavity must be rated for minimum 90°C (194°F) insulation (e.g. THHN / THWN in conduit or high-temp flexible metallic conduit).
• Flexible Conduit Whip: Terminate conduit into the knockout on the bottom of the heater using an approved liquid-tight or metallic conduit connector. Allow sufficient whip slack so the heater can be removed from its mounting brackets for element service.

B. GFCI Protection Guidance

• Manufacturer Directive: Harvia electric sauna heaters are designed to be connected to standard dedicated thermal-magnetic breakers without GFCI protection unless explicitly mandated by local electrical inspection authority.
• Nuisance Tripping Note: As with all mineral-insulated heating elements, the magnesium oxide element insulation absorbs atmospheric humidity during transit and storage. Initial energization produces harmless micro-amperage ground leakage that will trip 4–6 mA Class A GFCI breakers. Running the heater on a standard breaker boils out moisture within 1 hour.

C. Grounding & Neutral Connection

• Single Phase 240V Connection:
• Connect Hot Line 1 to L1.
• Connect Hot Line 2 to L2.
• Connect Equipment Ground to the green Ground Terminal / Chassis Lug.
• Neutral: The heating elements do NOT utilize a neutral wire on 240V. (For Digital KIP-W paired with Xenio CX170, the Xenio power unit also runs on 240V 2-wire + ground).

3. Clearances & Spatial Layout (Safety Distances)

Table 2: Minimum Safety Clearances to Combustibles

4. Wall Mounting & Sauna Kit Timber Construction

The dry weight of the Harvia KIP is approximately 30–31.5 lbs (14 kg), and ~72 lbs (33 kg) when loaded with 40 lbs of stones.

A. Pre-Fabricated Solid Timber Sauna Kits (Dundalk Leisurecraft & SaunaLife)

B. Custom Stud-Framed Saunas (with Cedar Cladding)

• If building an indoor custom sauna with standard 2x4 stud framing behind cedar tongue-and-groove cladding, install horizontal 2x4 solid wood backing between wall studs at the heater bracket height before nailing tongue-and-groove boards.

5. Control Wiring Differences: Dials (KIP-B) vs Digital (KIP-W)

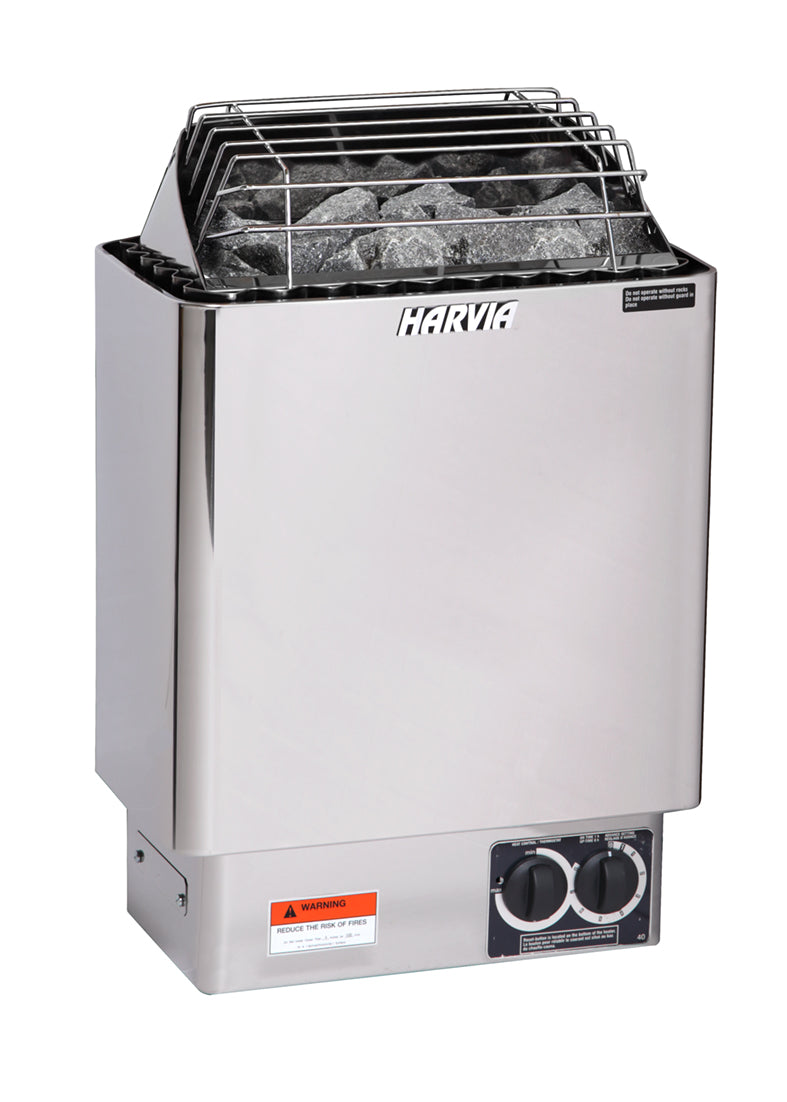

Variant 1: Mechanical Dials (KIP-B)

• Features built-in controls on the bottom front:
• Thermostat Dial: Regulates bath temperature.
• 60-Minute Timer Dial: Features a 1-hour active operational zone and a 1-to-8 hour delay start zone.
• High-Limit Reset Button: Located on the bottom electrical tray cover. If the sauna overheats, the mechanical high-limit trips and must be manually pressed to reset.
• Wiring Path: 240V power cable runs directly from the main panel through the conduit knockout into the bottom heater terminal block.

 [Main Service Distribution Panel]
    240V 2-Pole Dedicated Breaker (20A / 30A / 40A / 50A)
               |
               v (240V Line In: Hot 1, Hot 2 + Equipment Ground, Copper 90°C)
 [Harvia KIP-B Bottom Terminal Chamber]
  - Terminal L1: Hot Line 1
  - Terminal L2: Hot Line 2 (No neutral conductor connected)
  - Ground Lug: Equipment Grounding Conductor
               |
               v (Internal Factory Wiring)
 [Integrated Thermostat & 60-Min Timer Dials + Thermal High-Limit Safety Switch]
               |
               v
 [Heating Elements (3.0kW, 4.5kW, 6.0kW, or 8.0kW)]

Variant 2: Digital Xenio Control (KIP-W)

• Uses external Harvia Xenio CX170 digital touchscreen and power unit:
• 240V line feeds from service panel into Xenio power unit.
• Load wires route from Xenio power unit to KIP-W heater.
• Low-voltage temperature sensor with thermal fuse mounts on the ceiling directly above the heater per Harvia manual instructions.
• Touchscreen data cable connects to Xenio power unit.

 [Main Service Distribution Panel]
    240V 2-Pole Breaker (20A / 30A / 40A / 50A)
               |
               v (Line In: 2 Hots + Ground, Copper)
 [Harvia Xenio CX170 Power Unit] <==== (Low-Voltage Sensor Wire) ====> [Temperature Sensor w/ Thermal Fuse]
               |                                                        (Over heater ceiling per manual)
               |
               +==== (Data Cable) ====> [Xenio Wall Touchpad / Mobile WiFi]
               |                        (Mounted outside sauna room entrance)
               v (Load Out: Terminals U, V + Ground)
 [Harvia KIP-W Terminal Chamber]
  - Terminal U: Line 1
  - Terminal V: Line 2
  - Ground Lug: Equipment Grounding Conductor

6. Sizing Formula & Sauna Kit Verification

• Formula: Room Volume (cu. ft.) + (3.3 cu. ft. × Sq. Ft. Uninsulated Glass/Tile).
• Kit Compatibility:
• KIP-45 (100–210 cu. ft.): Compact 2–4 person indoor saunas.
• KIP-60 (170–300 cu. ft.): 4-person outdoor barrel saunas (6'×6' barrels) and medium indoor rooms.
• KIP-80 (250–425 cu. ft.): Sized for 6-person outdoor barrels (Dundalk Tranquility, Serenity) and outdoor cabins (Georgian Cabin). In outdoor sub-freezing winter conditions, the 8kW model is the gold standard for rapid heat-up.
