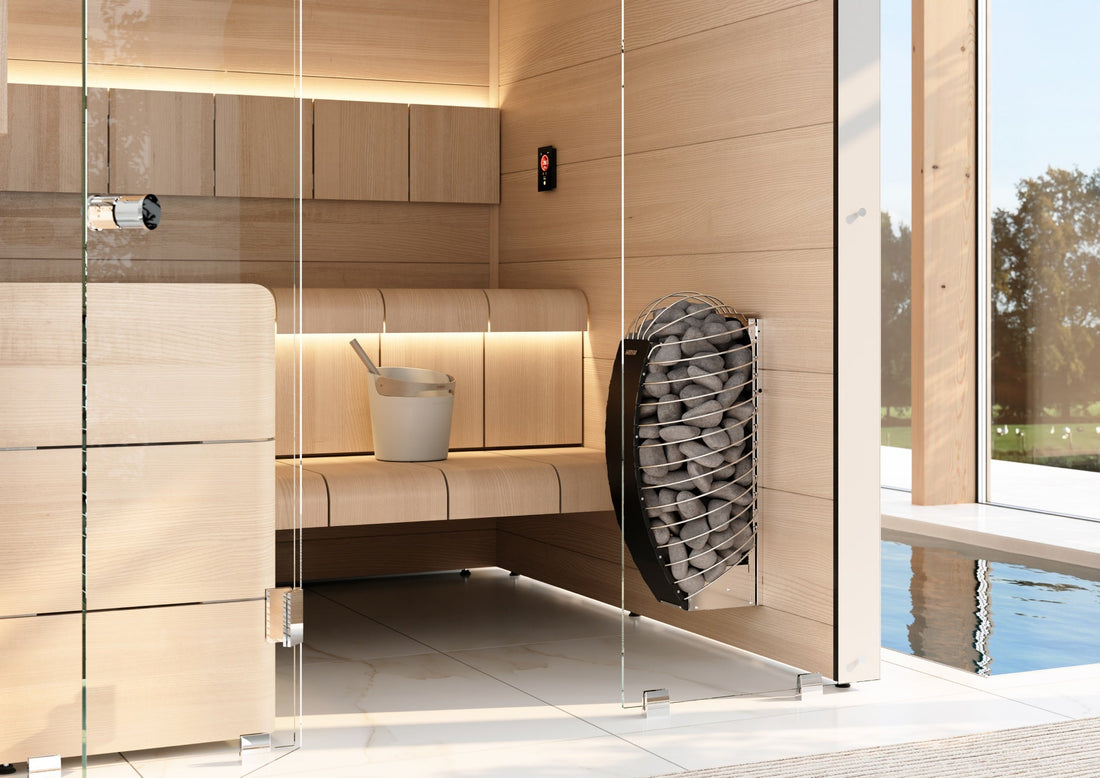

Harvia Spirit Electric Sauna Heater: Electrician's Installation & Rough-In Guide
EpicSauna Technical Team
Harvia Spirit Electric Sauna Heater
Sourcing the Harvia Spirit Electric Sauna Heater for your project? Browse available kW configurations, authentic vulcanite & olivine sauna stones, and official Harvia Xenio digital control packages at EpicSauna.
1. Quick Reference Electrical Specification Matrix
All ratings apply to North American standard single-phase residential electrical service (240V, 2-wire + equipment ground).
Table 1: 240V Single-Phase Specifications
| Heater Model | Power Rating (kW) | Operating Voltage | Current Draw (Amps) | Recommended Circuit Breaker | Minimum Copper Wire Gauge (AWG 90°C) | Sauna Room Volume Range | Required Stone Mass | Dimensions (W × D × H) | Total Loaded Weight |
|---|---|---|---|---|---|---|---|---|---|
| Spirit SP60E | 6.0 kW | 240 V (1PH / 2~) | 25.0 A | 30 A (2-Pole) | 10 AWG (Copper) | 177 – 294 cu. ft. (5.0–8.3 m³) | 120 lbs (55 kg / 4 boxes) | 15.2" × 13.1" × 29.5" (385 × 334 × 750 mm) | ~150 lbs (68 kg) |
| Spirit SP80E | 8.0 kW | 240 V (1PH / 2~) | 33.3 A | 40 A or 50 A (2-Pole)* | 8 AWG (Copper) | 177 – 431 cu. ft. (5.0–12.2 m³) | 120 lbs (55 kg / 4 boxes) | 15.2" × 13.1" × 29.5" (385 × 334 × 750 mm) | ~150 lbs (68 kg) |
| Spirit SP90E | 9.0 kW | 240 V (1PH / 2~) | 37.5 A | 50 A (2-Pole) | 8 AWG (Copper) | 177 – 494 cu. ft. (5.0–14.0 m³) | 120 lbs (55 kg / 4 boxes) | 15.2" × 13.1" × 29.5" (385 × 334 × 750 mm) | ~150 lbs (68 kg) |
\Note on SP80E Breaker: NEC 125% continuous duty rule requires 50A breaker in strict inspection jurisdictions.*
2. Critical Electrician Directives & Code Mandates
Licensed Electrician & Safety Directive
Licensed Electrician Requirement: All rough-in, conduit pathways, panel breaker installations, and Xenio power unit connections must be carried out by a licensed electrical contractor conforming to NEC (NFPA 70) or CEC standards.
A. Supply Conductor Standards & Conduit Entry
- Conductor Material: Copper conductors only, rated minimum 90°C (194°F) (THHN/THWN).
- Conduit Rough-In: Terminate wiring using flexible metallic or liquid-tight conduit through the rear knockout. Ensure sufficient whip slack so the heater can be mounted cleanly on its wall bracket.
-
Neutral Conductor: No neutral wire is connected to the Spirit heater chassis. Operating voltage is straight 240V (
L1,L2, and equipment ground).
B. GFCI Breaker Policy
- Manufacturer Recommendation: Connect to a dedicated standard 2-pole thermal-magnetic breaker without GFCI. Standard Class A GFCI breakers (4–6 mA) are prone to nuisance tripping during startup due to minor atmospheric moisture absorption in the heating elements, which evaporates within 1 hour of heating.
3. Clearances & Spatial Layout (Safety Distances)
Table 2: Minimum Safety Clearances to Combustibles
| Parameter | Spirit SP60E | Spirit SP80E | Spirit SP90E |
|---|---|---|---|
| Minimum Distance to Side Wall | 2.0 in (50 mm) | 3.0 in (75 mm) | 4.0 in (100 mm) |
| Minimum Distance to Finished Floor | 3.9 in (100 mm) | 3.9 in (100 mm) | 3.9 in (100 mm) |
| Minimum Clearance to Ceiling | 43.3 in (1,100 mm) above stone surface | 43.3 in (1,100 mm) above stone surface | 43.3 in (1,100 mm) above stone surface |
| Minimum Distance to Front Guard Rail | 2.0 in (50 mm) | 2.0 in (50 mm) | 2.0 in (50 mm) |
| Minimum Ceiling Height | 74.8 in (1,900 mm) | 74.8 in (1,900 mm) | 74.8 in (1,900 mm) |
4. Wall Mounting & Sauna Kit Timber Construction
The loaded operating weight of the Harvia Spirit with 120 lbs of rounded stones is ~150 lbs (68 kg).
A. Pre-Fabricated Solid Timber Sauna Kits (Dundalk Leisurecraft & SaunaLife)
Pre-Manufactured Solid Timber Kit Structural Directives
Kit Owners & Installers Reassurance: If installing Harvia Spirit into an EpicSauna pre-manufactured solid timber kit:
- Direct Wall Mounting: The curved wall mounting plate attaches directly into the solid 1.5"+ cedar or spruce wall staves using heavy-duty wood lag screws.
- No Stud Alteration: Solid 1.5" cedar staves provide continuous structural wood with exceptional screw withdrawal strength that easily supports the 150 lb loaded heater without cutting walls or adding blocking.
B. Custom Indoor Builds
- If building an indoor custom sauna with 2x4 stud framing and cedar tongue-and-groove cladding, install horizontal 2x4 or 2x6 solid wood backing between wall studs at the mounting bracket height before nailing tongue-and-groove boards.
5. Control System Architecture (Harvia Xenio CX170)
The Harvia Spirit requires the external Harvia Xenio CX170 Power Unit & Digital Touchscreen.
[Main Service Distribution Panel]
240V 2-Pole Breaker (30A or 50A)
|
v (Line In: 2 Hots + Ground, Copper)
[Harvia Xenio CX170 Power Unit] <==== (Low-Voltage Sensor Wire) ====> [Temperature Sensor w/ Thermal Fuse]
| (Mounted on ceiling per manual)
|
+==== (Data Cable) ====> [Xenio Wall Touchpad / Mobile WiFi]
| (Mounted outside sauna room)
v (Load Out: Terminals U, V + Ground)
[Harvia Spirit Rear Terminal Chamber]
- Terminal U: Line 1
- Terminal V: Line 2
- Ground Lug: Equipment Grounding Conductor6. Sizing Formula & Sauna Kit Verification
- Formula: Room Volume (cu. ft.) + (3.3 cu. ft. × Sq. Ft. Uninsulated Glass/Tile).
- Kit Compatibility:
- Spirit SP60E (177–294 cu. ft.): 4-person indoor saunas, 6'×6' outdoor barrels.
- Spirit SP80E (177–431 cu. ft.): 6-person outdoor barrels (Dundalk Tranquility, Serenity).
- Spirit SP90E (177–494 cu. ft.): Outdoor cabins (Georgian Cabin) requiring high thermal mass and rapid cold-climate recovery.
Frequently Asked Questions (Electrician & Rough-In Knowledge Base)
How many boxes of stones does the Harvia Spirit require?
The Harvia Spirit requires approximately 120 lbs (55 kg) of rounded olivine sauna stones (supplied as 4 boxes of rounded stones, 2"–4" diameter). The rounded stones are essential for the organic droplet aesthetic and proper air flow.
What size breaker does the Harvia Spirit 8kW need?
The Spirit 8kW draws 33.3 Amps at 240V. Per the user manual and NEC rules, it requires an 8 AWG copper wire and a 40 Amp or 50 Amp 2-pole circuit breaker.
Does the Harvia Spirit require an external controller?
Yes. The Spirit is an external-control "E" model and requires the Harvia Xenio CX170 digital power unit and control panel.
---
8. Official Manual Audit & Compliance Verification
| Parameter / Directive | Manual Sourced Value | Verified Manual Location | Audit Status |
|---|---|---|---|
| Spirit SP60E Electrical Data | 6.0 kW, 25.0A, 30A Breaker, 10 AWG | Page 4, Table 1 & IDM Col 29-34 | AUDITED & VERIFIED |
| Spirit SP80E Electrical Data | 8.0 kW, 33.3A, 40A/50A Breaker, 8 AWG | Page 4, Table 1 & IDM Col 29-34 | AUDITED & VERIFIED |
| Spirit SP90E Electrical Data | 9.0 kW, 37.5A, 50A Breaker, 8 AWG | Page 4, Table 1 & IDM Col 29-34 | AUDITED & VERIFIED |
| Side Wall Clearance | 2.0" (SP60), 3.0" (SP80), 4.0" (SP90) | Page 3, Safety Clearances | AUDITED & VERIFIED |
| Ceiling Clearance | Min. 43.3 in (1,100 mm) | Page 3, Safety Clearances | AUDITED & VERIFIED |
| Floor Clearance | Min. 3.9 in (100 mm) | Page 3, Safety Clearances | AUDITED & VERIFIED |
| Stone Quantity | 120 lbs (55 kg / 4 boxes rounded) | Page 4 & IDM Col 36 | AUDITED & VERIFIED |
| Wire Conductor Type | Copper Only, Min 90°C THHN | Page 4, Wiring Instructions | AUDITED & VERIFIED |
| Mounting Style | Curved wall-mount frame | Page 3, Installation Section | AUDITED & VERIFIED |
