Harvia Vega Compact Electric Sauna Heater: Electrician's Installation & Rough-In Guide
EpicSauna Technical Team
Official Hardware Catalog
View Product →

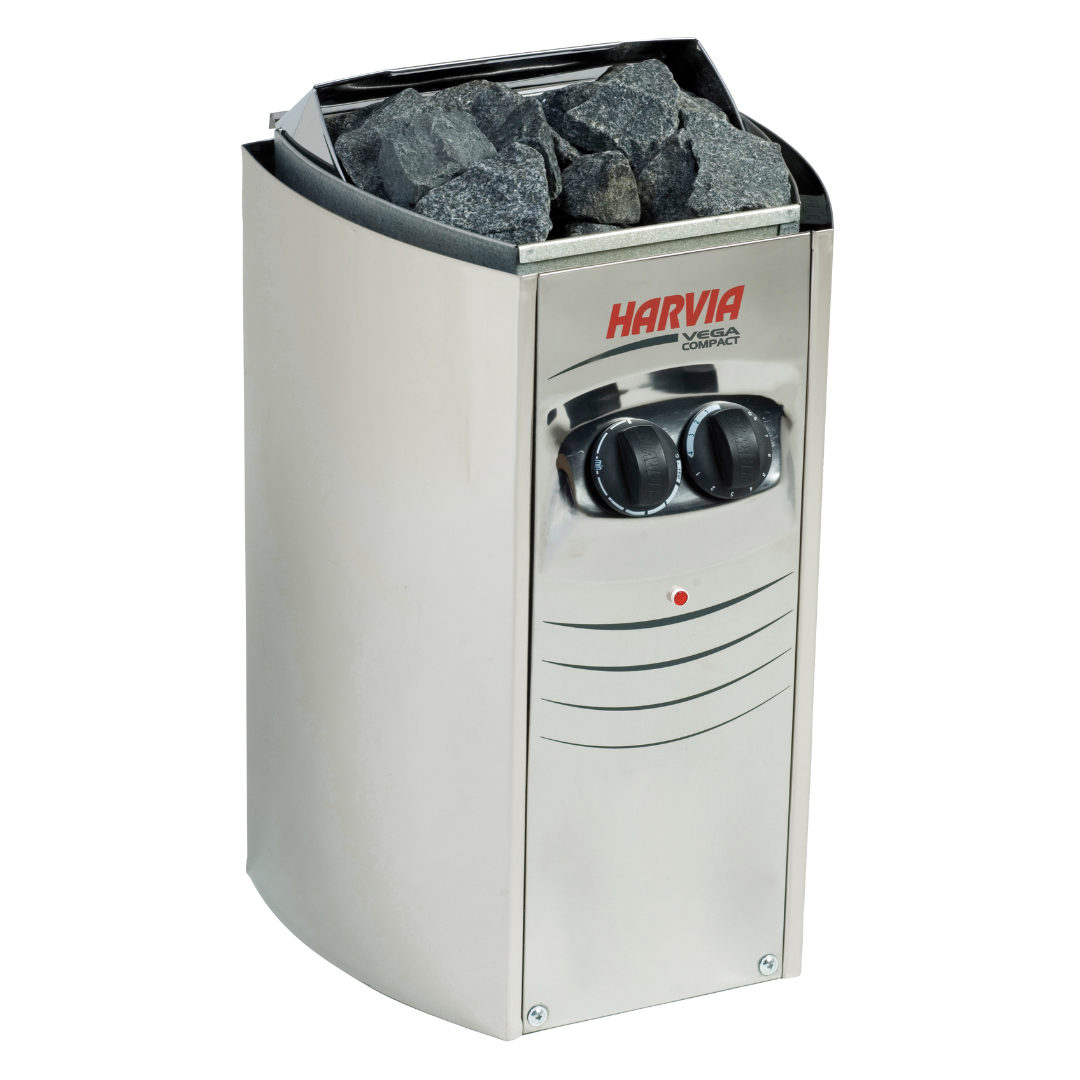

Harvia Vega Compact Electric Sauna Heater
Sourcing the Harvia Vega Compact Electric Sauna Heater for your project? Browse available kW configurations, authentic vulcanite & olivine sauna stones, and official Harvia control packages at EpicSauna.
Catalog Quick Links: Vega Compact Dials (Catalog PDP) • Harvia Sauna Stones (40 lbs) • Harvia Brand Catalog • EpicSauna Canadian Timber Saunas
1. Quick Reference Electrical Specification Matrix
The Harvia Vega Compact is engineered specifically for compact 1- to 2-person residential saunas. The 1.9 kW model features a rare 120V plug-and-play / dedicated branch circuit capability, while the 3.5 kW runs on standard 240V single-phase.
Table 1: Electrical Specifications
| Heater Model | Power Rating (kW) | Operating Voltage | Current Draw (Amps) | Minimum Circuit Breaker | Minimum Copper Wire Gauge (AWG 90°C) | Sauna Room Volume Range | Required Stone Mass | Dimensions (W × D × H) | Total Loaded Weight |
|---|---|---|---|---|---|---|---|---|---|
| Vega Compact 1900 | 1.9 kW | 120 V (1PH, 1~) | 15.9 A | 20 A (1-Pole) | 12 AWG (Copper: Hot, Neutral, Ground) | 70 – 106 cu. ft. (2.0–3.0 m³) | 22 lbs (10 kg / 0.5 box) | 11.0" × 11.6" × 20.0" (280 × 295 × 505 mm) | ~38 lbs (17 kg) |
| Vega Compact 3500 | 3.5 kW | 240 V (1PH / 2~) | 14.6 A | 20 A (2-Pole) | 12 AWG (Copper: 2 Hots, Ground) | 70 – 175 cu. ft. (2.0–5.0 m³) | 22 lbs (10 kg / 0.5 box) | 11.0" × 11.6" × 20.0" (280 × 295 × 505 mm) | ~39 lbs (18 kg) |
Source: Harvia Vega Compact Manual & IDM Col 29–36.
2. Critical Electrician Directives & Code Mandates
120V Dedicated Circuit Mandate
120V Dedicated Branch Circuit Code Mandate
Even on the 120V model (1.9 kW), the heater draws 15.9 Amps continuously. Under NEC 210.19(A)(1) and NEC 422.13, continuous loads running 3 hours or more must not exceed 80% of branch circuit ampacity (20A × 0.80 = 16.0A). It must be served by a dedicated 20 Amp single-pole branch circuit wired with minimum 12 AWG 90°C copper conductors. Under no circumstances may this circuit share loads with convenience receptacles, lighting, or exhaust fans.
A. Supply Conductor Standards & Neutral Wiring
- 120V Wiring (Vega 1900): Run 1 Hot (Black), 1 Neutral (White), and 1 Equipment Ground (Green/Bare) in minimum 12 AWG 90°C copper. Neutral is mandatory for 120V operation.
-
240V Wiring (Vega 3500): Run 2 Hots (
L1,L2) and 1 Equipment Ground (Green/Bare) in minimum 12 AWG 90°C copper. Neutral is not connected on the 240V model. - Conduit Rough-In: Terminate wiring using flexible metallic or liquid-tight conduit through the rear knockout.
B. GFCI Breaker Policy
- Manufacturer Recommendation: Connect to a dedicated standard thermal-magnetic breaker without GFCI. Standard Class A GFCI breakers (4–6 mA) are prone to nuisance tripping during startup due to minor atmospheric moisture absorption in the heating elements, which evaporates within 1 hour of heating.
3. Clearances & Spatial Layout (Safety Distances)
Table 2: Minimum Safety Clearances to Combustibles
| Parameter | Vega Compact 1900 (1.9 kW) | Vega Compact 3500 (3.5 kW) |
|---|---|---|
| Minimum Distance to Side Wall | 0.8 in (20 mm) | 2.0 in (50 mm) |
| Minimum Distance to Finished Floor | 3.9 in (100 mm) (Recommended 4–7 in) | 3.9 in (100 mm) (Recommended 4–7 in) |
| Minimum Clearance to Ceiling | 35.4 in (900 mm) above stone surface | 35.4 in (900 mm) above stone surface |
| Minimum Clearance to Front / Guard | 0.8 in (20 mm) | 2.0 in (50 mm) |
| Minimum Ceiling Height | 67.0 in (1,700 mm) | 67.0 in (1,700 mm) |
Safety Clearances & Spatial Elevation Schematic
SAUNA CEILING (Min Height: 67.0 in / 1700 mm)
=============================================================================
^ ^
| Min. 35.4 in (900 mm) |
| Clearance Above Stone Surface |
v |
+---------------+ |
| ############# | <--- Sauna Stones (22 lbs / 10 kg) |
| HARVIA VEGA | |
| COMPACT | <--- Top Ergonomic Operating Switches (Timer/Temp) |
| (1.9kW/3.5kW) | |
+---------------+ |
^ |
| Min. 3.9 in (100 mm) [Recommended 4-7 in] |
v Finished Floor Clearance |
=====================================================================+
| <--- Side Wall Clearance: Min. 0.8 in (1900) / 2.0 in (3500)
| <--- Front Clearance: Min. 0.8 in (1900) / 2.0 in (3500)4. Wall Mounting & Sauna Kit Timber Construction
The loaded operating weight of the Vega Compact with 22 lbs of stones is only ~38 lbs (17 kg).
A. Pre-Fabricated Solid Timber Sauna Kits (Dundalk Leisurecraft & SaunaLife)
Pro Rough-In Advisory
Kit Owners & Installers Reassurance
If installing into an EpicSauna pre-manufactured solid timber kit:
- Direct Wall Mounting: The mounting bracket screws directly into the solid 1.5"+ cedar or spruce wall staves anywhere on the wall.
- Lightweight Footprint: At only 38 lbs loaded, solid cedar timber provides immense structural strength. No hollow-wall anchors, wall modifications, or additional stud blocking are required.
B. Custom Indoor Builds
- In custom stud-framed builds with cedar cladding, secure mounting screws into wall studs or install a horizontal wood backer plate.
5. System Wiring Architecture & Internal Schematics
A. Vega Compact 1900 (120V Single-Phase Dedicated Circuit)
120V Dedicated Branch Circuit Wiring Architecture
[Residential Main Electrical Panel]
Dedicated 120V 20A 1-Pole Circuit Breaker (Strictly NO Shared Loads)
|
v (3 Conductors: 12 AWG Copper THHN/THWN)
v [Hot (Black), Neutral (White), Equipment Ground (Green/Bare)]
[Harvia Vega Compact 1900 Rear Terminal Block]
- Terminal L1: Hot (120V)
- Terminal N: Neutral (Return)
- Ground Lug: Equipment Grounding Conductor
|
v (Factory Internal Harness)
[Top-Mounted Mechanical Thermostat & 60-Minute Timer Dials]
|
v
[1.9 kW High-Efficiency Heating Element]B. Vega Compact 3500 (240V Single-Phase Circuit)
System Power & Control Architecture Schematic
[Residential Main Electrical Panel]
Dedicated 240V 20A 2-Pole Circuit Breaker
|
v (3 Conductors: 12 AWG Copper THHN/THWN)
v [Line 1 (Black), Line 2 (Red), Equipment Ground (Green/Bare)]
[Harvia Vega Compact 3500 Rear Terminal Block]
- Terminal L1: Line 1
- Terminal L2: Line 2 (No Neutral Connected)
- Ground Lug: Equipment Grounding Conductor
|
v (Factory Internal Harness)
[Top-Mounted Mechanical Thermostat & 60-Minute Timer Dials]
|
v
[3.5 kW High-Efficiency Heating Elements]Frequently Asked Questions (Electrician & Rough-In Knowledge Base)
Does the Harvia Vega Compact require an external wall controller?
No. The Vega Compact features integrated mechanical controls located near the top of the heater for ergonomic operation without bending down.
---
7. Official Manual Audit & Compliance Verification
| Parameter / Directive | Manual Sourced Value | Verified Manual Location | Audit Status |
|---|---|---|---|
| Vega 1900 Electrical Data | 1.9 kW @ 120V 1PH, 15.9A, 20A 1P Breaker, 12 AWG | Page 4, Table 1 & IDM Col 29-34 | AUDITED & VERIFIED |
| Vega 3500 Electrical Data | 3.5 kW @ 240V 1PH, 14.6A, 20A 2P Breaker, 12 AWG | Page 4, Table 1 & IDM Col 29-34 | AUDITED & VERIFIED |
| Side Wall Clearance | 0.8 in (20 mm) / 2.0 in (50 mm) | Page 3, Safety Clearances | AUDITED & VERIFIED |
| Ceiling Clearance | Min. 35.4 in (900 mm) | Page 3, Safety Clearances | AUDITED & VERIFIED |
| Floor Clearance | Min. 3.9 in (100 mm) | Page 3, Safety Clearances | AUDITED & VERIFIED |
| Stone Quantity | 22 lbs (10 kg / 0.5 box) | Page 4 & IDM Col 36 | AUDITED & VERIFIED |
| Conductor Rating | Copper Only, Min 90°C THHN | Page 4, Wiring Instructions | AUDITED & VERIFIED |
| Mounting Style | Compact wall-mount bracket | Page 3, Installation Section | AUDITED & VERIFIED |
Need Technical Rough-In Assistance or Commercial Project Support?
EpicSauna is an authorized distributor of Harvia, HUUM, and Saunum sauna heaters. Our technical support team works directly with licensed electrical contractors, commercial builders, and architects across North America.
