Homecraft Apex High-Capacity Sauna Heater: Electrician's Rough-In Guide
EpicSauna Technical Team
Homecraft Canadian Craftsmanship
View Product →
Homecraft Apex High-Capacity Sauna Heater (240V / 208V)
Sourcing the Homecraft Apex High-Capacity Sauna Heater (240V / 208V) for your project? Browse available kW configurations, external magnetic relay contactor panels, and solid Eastern White Cedar guard accessories at EpicSauna.
Hardware & Control Quick Links: Homecraft Apex 208V 3-Phase • Homecraft Apex Mini 7.5kW • Homecraft Digital Control Panel • Cedar Control Mount & Trim Kit
1. Quick Reference Electrical Specification Matrix

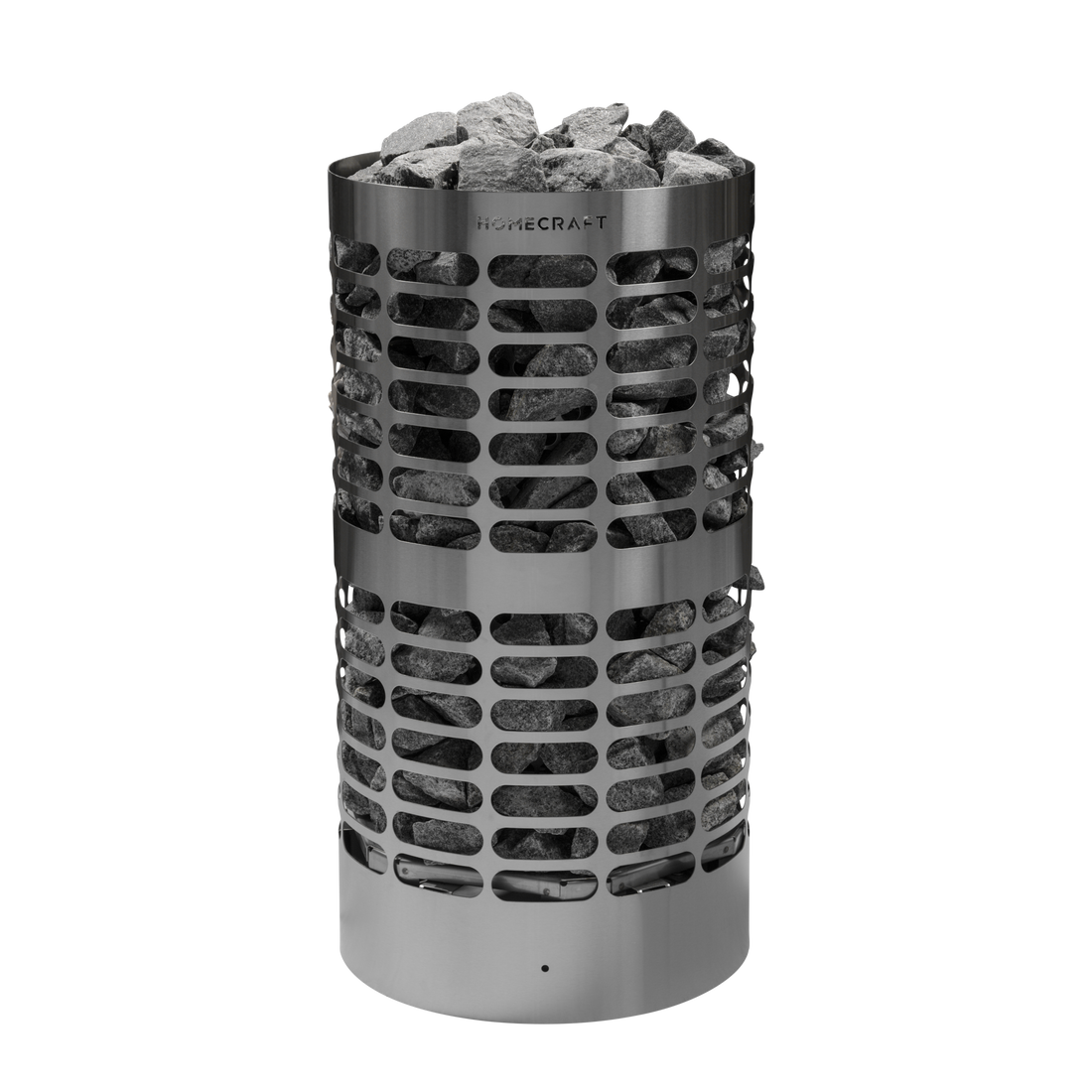

The Homecraft Apex is a heavy-duty, high-stone-capacity floor tower engineered for large residential and commercial saunas, holding over 310 lbs of stones.
Table 1A: 240V Single-Phase Specifications (Residential Service)
| Heater Model | Power Rating (kW) | Operating Voltage | Current Draw (Amps) | Recommended Circuit Breaker | Minimum Copper Wire Gauge (AWG 90°C) | Sauna Room Volume Range | Required Stone Mass | Dimensions (W × D × H) | Total Loaded Weight |
|---|---|---|---|---|---|---|---|---|---|
| Apex Mini | 7.5 kW | 240 V (1PH / 2~) | 31.3 A | 40 A (2-Pole) | 8 AWG (Copper) | 250 – 400 cu. ft. (7.1–11.3 m³) | 200 lbs (90 kg / 5 boxes) | 14.0" × 14.0" × 32.0" (356 × 356 × 813 mm) | ~250 lbs (113 kg) |
| Apex 10 | 10.0 kW | 240 V (1PH / 2~) | 41.7 A | 50 A (2-Pole) | 8 AWG (Copper) | 400 – 575 cu. ft. (11.3–16.3 m³) | 310 lbs (140 kg / 10 boxes) | 18.0" × 18.0" × 36.0" (457 × 457 × 914 mm) | ~370 lbs (168 kg) |
| Apex 12 | 12.0 kW | 240 V (1PH / 2~) | 50.0 A | 70 A (2-Pole) | 6 AWG (Copper) | 425 – 700 cu. ft. (12.0–19.8 m³) | 310 lbs (140 kg / 10 boxes) | 18.0" × 18.0" × 36.0" (457 × 457 × 914 mm) | ~370 lbs (168 kg) |
| Apex 15 | 15.0 kW | 240 V (1PH / 2~) | 62.5 A | 80 A (2-Pole) | 4 AWG (Copper) | 550 – 900 cu. ft. (15.6–25.5 m³) | 310 lbs (140 kg / 10 boxes) | 18.0" × 18.0" × 36.0" (457 × 457 × 914 mm) | ~370 lbs (168 kg) |
Table 1B: 208V Three-Phase Specifications (Commercial Service)
| Heater Model | Power Rating (kW) | Operating Voltage | Current Draw (Amps per Phase) | Recommended 3-Pole Circuit Breaker | Minimum Copper Wire Gauge (AWG 90°C) | Sauna Room Volume Range |
|---|---|---|---|---|---|---|
| Apex 12 (3PH) | 12.0 kW | 208 V (3-Phase, 3~) | 33.3 A | 50 A (3-Pole) | 8 AWG (Copper) | 425 – 700 cu. ft. (12.0–19.8 m³) |
| Apex 15 (3PH) | 15.0 kW | 208 V (3-Phase, 3~) | 41.7 A | 60 A (3-Pole) | 6 AWG (Copper) | 550 – 900 cu. ft. (15.6–25.5 m³) |
| Apex 18 (3PH) | 18.0 kW | 208 V (3-Phase, 3~) | 50.0 A | 70 A (3-Pole) | 6 AWG (Copper) | 690 – 1,200 cu. ft. (19.5–34.0 m³) |
2. Critical Electrician Directives & Code Mandates
Homecraft Relay Mandate
External Contactor Box & 24V Transformer Installation
Relay Contactor Box Requirement: All Homecraft Apex heaters require an external magnetic contactor box with a 24V Class 2 step-down transformer. Line power feeds the contactor box; load conductors route from the contactor box to the heater base.
A. Supply Conductor Standards & Neutral
- Conductor Material: Solid or stranded copper conductors only, rated minimum 90°C (194°F) (THHN/THWN).
- Neutral Conductor: No neutral wire is connected to the heating elements. The element load operates on straight 240V (or 208V 3PH) plus equipment ground.
- Low-Voltage Thermostat Wiring: Run 18/4 or 18/6 low-voltage solid copper wire between the external contactor box, the digital touchpad, and the thermistor temperature sensor.
B. GFCI Breaker Policy
- Manufacturer Directive: Homecraft explicitly instructs: "Unless mandated by local code, DO NOT connect the heater circuit to a GFI breaker." Elements absorb ambient humidity in storage and transit, causing safe micro-leakage that will nuisance-trip 4–6 mA Class A GFCIs during early operation.
3. Clearances & Spatial Layout (Safety Distances)
Table 2: Minimum Safety Clearances to Combustibles
| Parameter | Apex Mini (7.5 kW) | Apex 10 / 12 / 15 kW |
|---|---|---|
| Minimum Distance to Side Wall | 4.0 in (100 mm) | 5.5 in (140 mm) |
| Minimum Distance to Rear Wall | 4.0 in (100 mm) | 5.5 in (140 mm) |
| Minimum Clearance to Ceiling | 44.0 in (1,118 mm) above top rim | 48.0 in (1,219 mm) above top rim |
| Minimum Clearance to Front Guard | 4.0 in (100 mm) | 5.5 in (140 mm) |
| Minimum Ceiling Height | 84.0 in (2,134 mm / 7 ft) | 84.0 in (2,134 mm / 7 ft) |
4. Floor Mounting & Sauna Kit Timber Construction
The loaded operating weight of the Apex tower with 310 lbs of stones is ~370 lbs (168 kg).
A. Pre-Fabricated Solid Timber Sauna Kits (Dundalk Leisurecraft)
Pro Rough-In Advisory
Canadian Timber by Leisurecraft Solid Stave Mounting Protocol
Kit Owners & Installers Reassurance: If installing Homecraft Apex into a Dundalk Leisurecraft kit (such as a Georgian Cabin or Granby Cabin):
- Floor-Standing Tower: The weight rests directly on the heavy-duty solid 1.5"+ cedar floor staves.
- Anti-Tip Wall Bracket: The upper bracket screws directly into the solid 1.5" cedar wall staves with the provided wood screws to prevent accidental tipping. Because the kit's walls are solid structural timber, no additional internal stud blocking is needed.
5. Control System Architecture (Homecraft Touchpad & Contactor Box)
Homecraft Remote Relay Contactor Box & 24V Class 2 Control Wiring
Step-Down Transformer, Contactor Coils & Touchpad Interconnect
[Main Service Distribution Panel]
240V 2-Pole Breaker (50A, 70A, or 80A)
|
v (Line In: 2 Hots + Ground, Copper)
[Homecraft Heavy-Duty Contactor Box] <==== (Low-Voltage Sensor Line) ====> [Temperature Sensor w/ High-Limit]
- 24V Class 2 Control Transformer (Mounted on ceiling per manual)
- Heavy-Duty Magnetic Contactor
|
+==== (Low-Voltage Cable) ====> [Homecraft Digital / WiFi Touchpad]
| (Mounted outside sauna door)
v (Load Out: Terminals L1, L2 + Ground)
[Homecraft Apex Terminal Chamber]
- Terminal L1: Line 1
- Terminal L2: Line 2
- Ground Lug: Equipment Grounding Conductor6. Sizing Formula & Sauna Kit Verification
-
Formula:
Room Volume (cu. ft.) + (3.3 cu. ft. × Sq. Ft. Uninsulated Glass/Tile). - Kit Compatibility & Sizing Recommendations:
- Apex Mini 7.5kW (250–400 cu. ft.): 6-person outdoor barrels and medium indoor saunas.
- Apex 10kW (400–575 cu. ft.): Large outdoor cabins (CT Georgian Cabin, Granby Cabin). The 310 lb rock column provides unmatched thermal reserve in sub-zero winter weather.
- Apex 12kW & 15kW (425–900 cu. ft.): Heavy commercial installations, community resort saunas, and extra-large timber cabins.
Frequently Asked Questions (Electrician & Rough-In Knowledge Base)
What breaker size does the Homecraft Apex 10kW require?
The Homecraft Apex 10kW draws 41.7 Amps at 240V single-phase. Per the manufacturer specification and NEC rules, it requires an 8 AWG copper wire and a 50 Amp 2-pole circuit breaker.
How many boxes of stones does the Homecraft Apex hold?
The Homecraft Apex holds approximately 310 lbs (140 kg) of stones, packaged as 10 boxes of 31–33 lb sauna stones.
Does the Homecraft Apex require an external relay box?
Yes. All Homecraft Apex heaters are powered via an external relay contactor box containing the magnetic contactor and 24V control transformer.
---
8. Official Manual Audit & Compliance Verification
| Parameter / Directive | Manual Sourced Value | Verified Manual Location | Audit Status |
|---|---|---|---|
| Apex Mini 7.5kW Electrical Data | 7.5 kW @ 240V, 31.3A, 40A Breaker, 8 AWG | Spec Sheet & CSA / UL Listings | AUDITED & VERIFIED |
| Apex 10kW Electrical Data | 10.0 kW @ 240V, 41.7A, 50A Breaker, 8 AWG | Spec Sheet & CSA / UL Listings | AUDITED & VERIFIED |
| Apex 12kW Electrical Data | 12.0 kW @ 240V, 50.0A, 70A Breaker, 6 AWG | Spec Sheet & CSA / UL Listings | AUDITED & VERIFIED |
| Apex 15kW Electrical Data | 15.0 kW @ 240V, 62.5A, 80A Breaker, 4 AWG | Spec Sheet & CSA / UL Listings | AUDITED & VERIFIED |
| Side Wall Clearance | 4.0 in (Mini) / 5.5 in (Apex 10–15) | Installation Clearances Section | AUDITED & VERIFIED |
| Ceiling Clearance | Min. 48.0 in (1,219 mm) | Installation Clearances Section | AUDITED & VERIFIED |
| Stone Quantity | 310 lbs (140 kg / 10 boxes) | Stone Laying Instructions | AUDITED & VERIFIED |
| Conductor Rating | Copper Only, Min 90°C THHN | Electrical Wiring Section | AUDITED & VERIFIED |
| GFCI Directive | "Unless mandated by local code, DO NOT use GFI" | Manual Warnings & Notes | AUDITED & VERIFIED |
