1. Quick Reference Electrical Specification Matrix

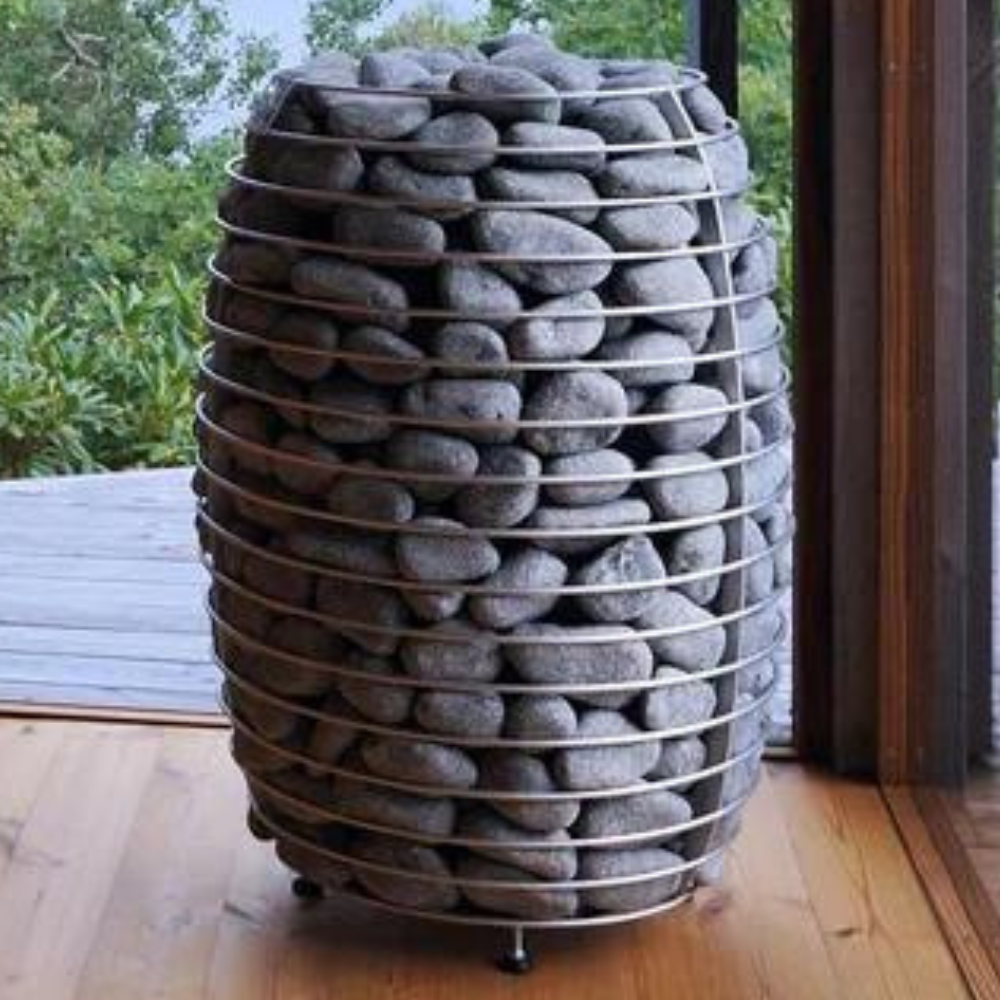

The HUUM HIVE Commercial series is engineered for high-capacity residential and commercial sauna facilities. Due to high total current draw, North American installations utilize dual dedicated branch circuits feeding two contactor banks.

Table 1A: 240V Single-Phase Specifications (Standard High-Capacity)

Source: HUUM HIVE User Manual, Page 5, Table 1 & Table 3.

Table 1B: 208V Single-Phase Specifications (Commercial 208V Supply)

Source: HUUM HIVE User Manual, Page 5, Table 2.

2. Critical Electrician Directives & Code Mandates

A. GFCI Protection Directives

• Manufacturer Recommendation: The manual states: "It is recommended to connect the unit to the mains without a GFCI breaker."
• Insulation Moisture Evaporation: 528 lbs of cold stones and high-capacity elements will cause normal, safe moisture-related micro-leakage during initial heat-up. Standard Class A GFCI breakers (4–6 mA) will nuisance trip. Moisture fully evaporates within 1–2 hours.

B. Conductor Sizing & Conduit Entry

• Conductors must comply with UL 62 (US) and CSA 49 (Canada), rated minimum 90°C copper.
• PVC non-heat-resistant insulation is prohibited.
• Both cable feeds enter through the designated bottom knockout plates beneath the heater chassis.

C. Mandatory Ferrule Terminal Crimping

• Mandatory Metal Sleeve Compression:

"ATTENTION! Crimping the power cable ends is mandatory. The compression of the metal sleeve ensures that the wire threads are held in place, minimizing the risk of loose connections that can cause electrical faults or pose safety hazards."

• Every conductor strand must be compressed with high-temperature ferrules before insertion into terminal blocks.

D. In-Sauna Junction Box Limits

• Any junction box within the sauna room must be waterproof and positioned at a maximum height of 19 ¹¹/₁₆ in (500 mm / 50 cm) from the floor.

3. Clearances & Spatial Layout (Safety Distances)

Table 2: Minimum Clearance Distances to Combustible Surfaces

Source: HUUM HIVE User Manual, Page 5, Table 3.

4. Floor Mounting & Sauna Kit Timber Construction

The dry weight of the HIVE Commercial chassis is 48.5–53 lbs (22–24 kg). When loaded with 528 lbs of stones, total operational weight reaches ~580 lbs (263 kg).

A. Pre-Fabricated Solid Timber Sauna Kits & Custom Facilities

5. Control System Architecture & Dual Contactor Box Setup

Operating a HIVE Commercial heater requires the HUUM UKU Control System paired with the UKU Extension Box (sub-relay module) to switch both electrical feeds simultaneously.

 [Main Service Distribution Panel]
    Circuit 1: 240V 2-Pole Breaker (30A or 50A)
    Circuit 2: 240V 2-Pole Breaker (30A or 50A)
         |                      |
         v                      v
 [HUUM UKU Main Contactor] + [UKU Extension Contactor Box]
         |                      |
         +=========== (Control Interconnect Link)
         |
         +==== (Low-Voltage Line) ====> [Temperature Sensor w/ Thermal Fuse]
         |
         +==== (Data Cable) ====> [UKU Touchscreen Interface]
         |                      |
         v (Line 1 Out: U1, V1) v (Line 2 Out: U2, V2)
 [HUUM HIVE Commercial Bottom Terminal Chamber]
  - Element Bank 1: U1, V1 + Ground
  - Element Bank 2: U2, V2 + Ground

6. Sizing Formula & Commercial Sauna Applications

• Formula: \text{Room Volume (cu. ft.)} + (3.3 \text{ cu. ft.} \times \text{Sq. Ft. Uninsulated Glass/Tile}).
• Commercial Applications:
• HIVE 12 (424–636 cu. ft.): Large private cabins, gym/spa saunas up to 10–12 person capacity.
• HIVE 15 (530–813 cu. ft.): High-traffic public saunas, large wellness center thermal suites.
• HIVE 18 (636–989 cu. ft.): Massive commercial community saunas (up to 1,000 cu. ft.) requiring heavy steam production and rapid thermal replenishment during frequent door openings.

8. Official Manual Audit & Compliance Verification
