1. Quick Reference Electrical Specification Matrix

All ratings apply to North American single-phase residential (240V, 2-wire + ground) and commercial network supply (208V, 2-wire + ground).

Table 1A: 240V Single-Phase Specifications (Standard Residential)

Source: HUUM HIVE User Manual, Page 5, Table 1 & Table 3.

Table 1B: 208V Single-Phase Specifications (Commercial / Network Supply)

Source: HUUM HIVE User Manual, Page 5, Table 2.

2. Critical Electrician Directives & Code Mandates

A. GFCI Protection Directives

• Manufacturer Recommendation: The official manual states: "It is recommended to connect the unit to the mains without a GFCI breaker."
• Temporary Moisture Absorption: The mineral magnesium oxide inside the heating elements naturally absorbs ambient moisture during warehouse storage and transport. Upon initial firing, minute earth leakage currents can cause standard 4–6 mA Class A GFCI breakers to trip. This moisture completely evaporates after 1 to 2 hours of continuous heating, restoring normal high insulation resistance.

B. Wire Specifications & Cable Entrance

• Cable Standard: The supply power cable must comply with UL 62 in the US and CSA 49 in Canada (oil, water, and sunlight resistant).
• PVC Prohibition: Non-heat-resistant cable with PVC insulation is prohibited inside or entering the sauna envelope. Minimum 90°C / 105°C copper conductors are required.
• Cable Entrance: Conductor entrance knockouts are located on the bottom cover plate of the HIVE heater base.

C. Mandatory Terminal Crimping

• Mandatory Ferrule Sleeves:

"ATTENTION! Crimping the power cable ends is mandatory. The compression of the metal sleeve ensures that the wire threads are held in place, minimizing the risk of loose connections that can cause electrical faults or pose safety hazards."

• Strip stranded copper wires cleanly, apply high-temperature metal ferrule sleeves, and compress with a ratcheting crimper prior to insertion into the U and V terminal blocks.

D. In-Sauna Junction Box Regulations

• If a junction box is used inside the sauna room:
• Must be waterproof (IPX4 / NEMA 4X).
• Maximum allowable mounting height: 19 ¹¹/₁₆ in (500 mm / 50 cm) from the finished floor.

3. Clearances & Spatial Layout (Safety Distances)

Table 2: Minimum Clearance Distances to Combustible Surfaces

Source: HUUM HIVE User Manual, Page 5, Table 3.

4. Floor Mounting & Sauna Kit Timber Construction

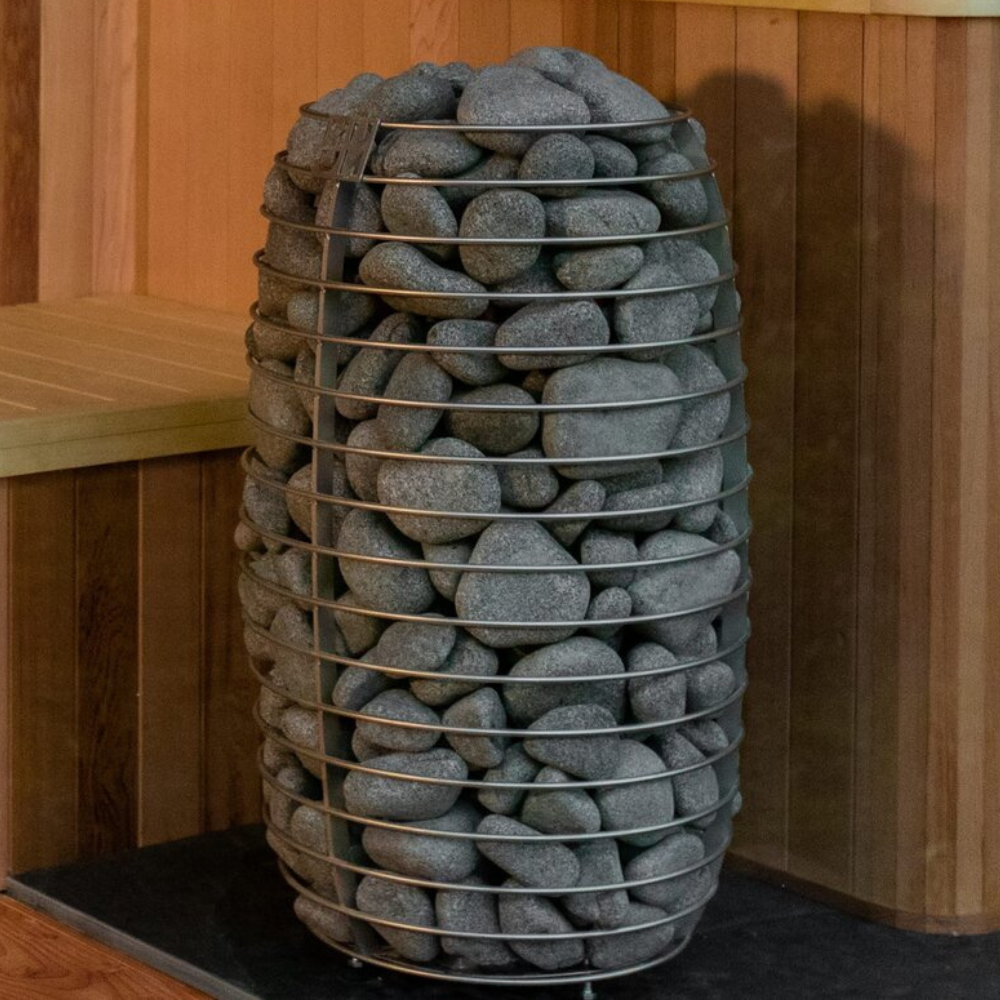

The dry weight of the HIVE Mini chassis is 35.2–39.7 lbs (16–18 kg). When loaded with 330 lbs of stones, total operational weight is approximately 370 lbs (168 kg).

A. Pre-Fabricated Solid Timber Sauna Kits (Dundalk Leisurecraft & SaunaLife)

B. Bench Submersion / Embedding

• If partially recessing the HIVE Mini into a sauna bench:
• At least 13 ²⁵/₃₂ in (350 mm) of the heater must protrude above the bench top surface.
• Use the official HUUM HIVE Embedding Flange to finish the cut-out perimeter.

5. Control System Architecture & External Power Module

The HIVE Mini requires an external control unit (such as the HUUM UKU Local, WiFi, or GSM System).

 [Main Service Panel]
    240V 2-Pole Breaker (30A or 50A)
               |
               v (Line In: 2 Hots + Ground, Copper)
 [HUUM UKU Power Contactor Module] <==== (Low-Voltage Sensor Wire) ====> [Temperature Sensor w/ Safety Fuse]
               |                                                         (Over heater ceiling, min. clearances)
               |
               +==== (Low-Voltage Data Cable) ====> [UKU Wall Interface / Mobile App]
               |
               v (Load Out: Terminals U, V + Ground)
 [HUUM HIVE Mini Bottom Electrical Chamber]
  - Terminal U: Line 1 (ferrule crimped)
  - Terminal V: Line 2 (ferrule crimped)
  - Ground Lug: Equipment Grounding Conductor

6. Sizing Formula & Sauna Kit Verification

• Formula: \text{Room Volume (cu. ft.)} + (3.3 \text{ cu. ft.} \times \text{Sq. Ft. Uninsulated Glass/Tile}).
• Kit Compatibility:
• HIVE Mini 6kW (177–318 cu. ft.): Compact indoor rooms, 4-person outdoor barrel saunas in temperate regions.
• HIVE Mini 9kW (283–460 cu. ft.): Dundalk Leisurecraft 6'×7' / 6'×8' Tranquility and Serenity Barrels, CT Georgian Cabins, and SaunaLife outdoor saunas.
• HIVE Mini 11kW (354–566 cu. ft.): Large outdoor cabin saunas with expansive double-glass doors and windows installed in freezing northern winter climates.

8. Official Manual Audit & Compliance Verification
