1. Quick Reference Electrical Specification Matrix

All ratings apply to North American single-phase residential (240V, 2-wire + ground) and commercial network supply (208V, 2-wire + ground).

Table 1A: 240V Single-Phase Specifications (Standard Residential)

Source: HUUM STEEL User Manual, Page 5, Table 1 & Table 3.

Table 1B: 208V Single-Phase Specifications (Commercial / Network Supply)

Source: HUUM STEEL User Manual, Page 5, Table 2.

2. Critical Electrician Directives & Code Mandates

A. GFCI Protection Directives

• Manufacturer Recommendation: The official manual states: "It is recommended to connect the unit to the mains without a GFCI breaker."
• Insulation Moisture Burn-Off: Electric sauna elements absorb atmospheric humidity during transit and storage. Upon initial start-up, minor electrical leakage to ground is normal and will nuisance-trip sensitive 4–6 mA Class A GFCI breakers. Full insulation resistance is restored automatically after 1–2 hours of continuous heating.

B. Supply Cable Standards & Temperature Ratings

• Standards: Power conductors must meet UL 62 (USA) and CSA 49 (Canada) specifications for heat, sunlight, water, and oil resistance.
• PVC Prohibition: Non-heat-resistant cables with standard PVC insulation are strictly prohibited. Conductors terminating in or near the heater base must be 90°C / 105°C copper.
• Cable Entrance: Knockouts are located on the bottom cover plate of the STEEL base.

C. Mandatory Terminal Ferrule Crimping

• Mandatory Metal Sleeve Compression:

"ATTENTION! Crimping the power cable ends is mandatory. The compression of the metal sleeve ensures that the wire threads are held in place, minimizing the risk of loose connections that can cause electrical faults or pose safety hazards."

• Stranded copper conductors must be fitted with high-temp copper ferrules before inserting into the terminal block.

D. In-Sauna Junction Box Limits

• If a transitional junction box is used inside the sauna room:
• Must be waterproof (IPX4 / NEMA 4X minimum).
• Maximum allowable height from finished floor: 19 ¹¹/₁₆ in (500 mm / 50 cm).

3. Clearances & Spatial Layout (Safety Distances)

Table 2: Minimum Clearance Distances to Combustible Surfaces

Source: HUUM STEEL User Manual, Page 5, Table 3.

4. Mounting & Sauna Kit Timber Construction

A. Pre-Fabricated Solid Timber Sauna Kits (Dundalk Leisurecraft & SaunaLife)

B. Special Stone Size Requirement

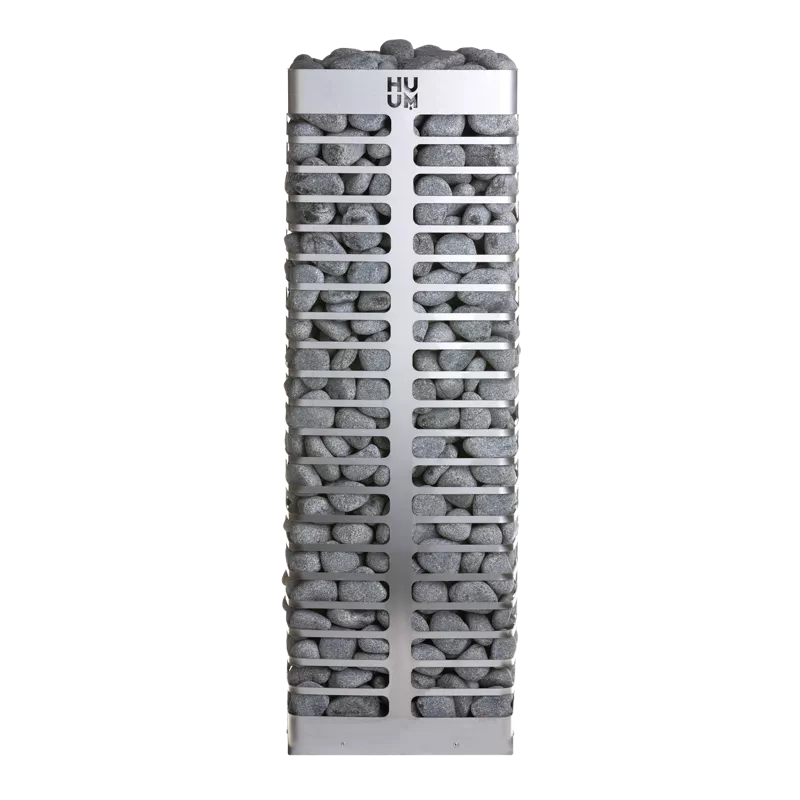

• Stone Dimension Mandate: Because of STEEL's narrow mesh basket spacing, smaller stones with a diameter of 1"–2" (3–5 cm) are required (do not use oversized 4" stones which can bend heating elements and block convection airflow).

5. Control System Architecture & External Power Module

The HUUM STEEL requires an external control unit (such as the HUUM UKU Local, WiFi, or GSM System).

 [Main Service Panel]
    240V 2-Pole Breaker (20A, 30A, or 50A)
               |
               v (Line In: 2 Hots + Ground, Copper)
 [HUUM UKU Power Contactor Module] <==== (Low-Voltage Sensor Line) ====> [Temperature Sensor w/ Thermal Fuse]
               |                                                         (Mounted on ceiling per manual)
               |
               +==== (Low-Voltage Cable) ====> [UKU Wall Interface / Mobile App]
               |
               v (Load Out: Terminals U, V + Ground)
 [HUUM STEEL Bottom Terminal Chamber]
  - Terminal U: Line 1 (ferrule crimped)
  - Terminal V: Line 2 (ferrule crimped)
  - Ground Lug: Equipment Grounding Conductor

6. Sizing Formula & Sauna Kit Verification

• Formula: \text{Room Volume (cu. ft.)} + (3.3 \text{ cu. ft.} \times \text{Sq. Ft. Uninsulated Glass/Tile}).
• Kit Compatibility:
• STEEL Mini 4 (106–177 cu. ft.): Compact indoor rooms, 2-person saunas.
• STEEL 6 (177–318 cu. ft.): 4-person outdoor barrel saunas and mid-size indoor saunas.
• STEEL 9 (283–460 cu. ft.): 6-person outdoor barrel saunas (Tranquility, Serenity) and CT Georgian Cabins.
• STEEL 11 (354–566 cu. ft.): Large outdoor cabins exposed to harsh sub-freezing winter weather.
