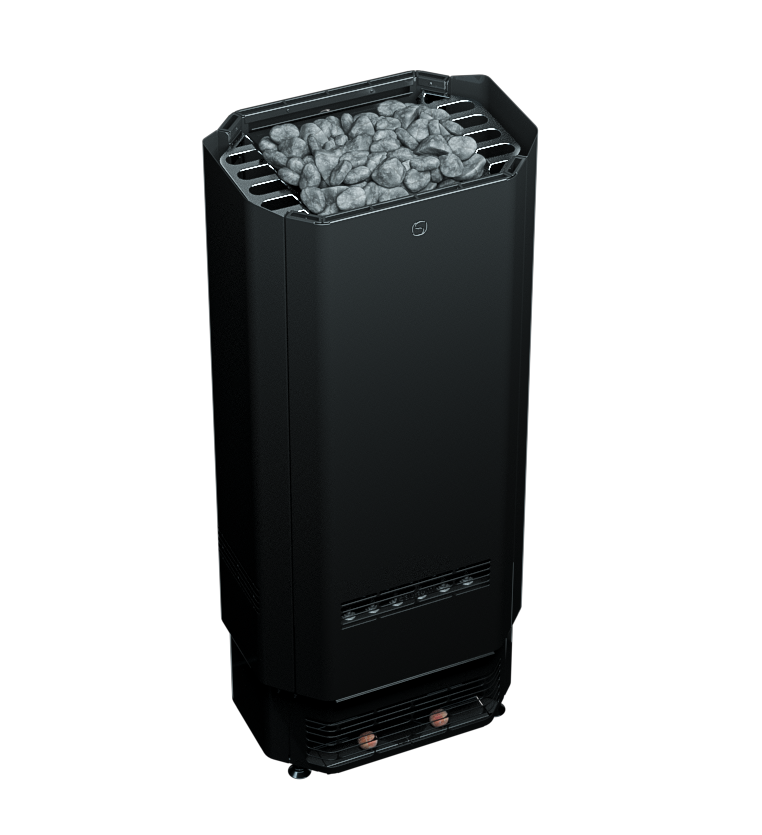

Saunum Air Perfect Integrated Sauna Heater: Electrician's Rough-In Guide
EpicSauna Technical Team
Saunum Air Perfect Concealed Sauna Heater
Sourcing the Saunum Air Perfect Concealed Sauna Heater for your project? Browse available kW configurations, authentic Himalayan salt balls & trays, and official Saunum AirIQ touchscreen control systems at EpicSauna.
1. Quick Reference Electrical Specification Matrix
The Saunum Air Perfect series is engineered for seamless architectural integration, recessing into or behind the sauna benches while routing equalized air through hidden ducts.
Table 1: 240V Single-Phase Specifications
| Heater Model | Element Power (kW) | Total Current (Amps) | Recommended Circuit Breaker | Minimum Copper Wire Gauge (AWG 90°C) | Sauna Room Volume Range | Required Stone Mass | Dimensions (W × D × H) | Total Loaded Weight |
|---|---|---|---|---|---|---|---|---|
| Air Perfect 7 | 7.0 kW | 28.75 A | 40 A (2-Pole) | 8 AWG (Copper) | 210 – 350 cu. ft. (6.0–10.0 m³) | 200–230 lbs (90–105 kg / 5–6 boxes) | 22.8" × 18.5" × 80.7" (580 × 470 × 2,050 mm) | ~360 lbs (163 kg) |
| Air Perfect 10 | 10.0 kW | 41.25 A | 50 A (2-Pole) | 8 AWG (Copper) | 318 – 565 cu. ft. (9.0–16.0 m³) | 200–230 lbs (90–105 kg / 5–6 boxes) | 22.8" × 18.5" × 80.7" (580 × 470 × 2,050 mm) | ~360 lbs (163 kg) |
2. Critical Electrician Directives & Code Mandates
Licensed Electrician & Safety Directive
Concealed Pathway Code Requirement: Because the Air Perfect integrates behind benches and wall cladding, all electrical rough-in conduit must be rigid or liquid-tight flexible metal conduit properly secured to framing prior to closing walls and installing bench platforms.
A. Supply Conductor Standards & Conduit Entry
- Conductor Material: Copper conductors only, rated minimum 90°C (194°F) (THHN/THWN).
- Conduit Rough-In: Terminate wiring through the bottom knockout on the lower tower service tray.
-
Neutral Conductor: The heater elements run on straight 240V (
L1,L2, and Ground). Verify whether the AirIQ main module requires a 120V neutral feed to power its electronic control logic and Wi-Fi interface.
B. GFCI Breaker Policy
- Manufacturer Recommendation: Connect to a dedicated standard 2-pole thermal-magnetic breaker without GFCI. Standard Class A GFCI breakers (4–6 mA) are prone to nuisance tripping during startup due to minor atmospheric moisture absorption in the large stone bank, which evaporates within 1 hour of heating.
3. Clearances & Spatial Layout (Safety Distances)
Table 2: Minimum Safety Clearances to Combustibles
| Parameter | Saunum Air Perfect 7 | Saunum Air Perfect 10 |
|---|---|---|
| Minimum Distance to Side Wall | 4.0 in (100 mm) | 4.0 in (100 mm) |
| Minimum Distance to Rear Wall | 2.0 in (50 mm) | 2.0 in (50 mm) |
| Minimum Clearance to Ceiling | 4.0 in (100 mm) above top air intake | 4.0 in (100 mm) above top air intake |
| Minimum Clearance to Front Bench | 4.0 in (100 mm) | 4.0 in (100 mm) |
4. Mounting & Sauna Kit Timber Construction
The dry weight of the Air Perfect is 147 lbs (67 kg). When loaded with 210 lbs of stones, total weight is ~360 lbs (163 kg).
A. Pre-Fabricated Solid Timber Sauna Kits (Dundalk Leisurecraft & SaunaLife)
Pre-Manufactured Solid Timber Kit Structural Directives
Kit Owners & Installers Reassurance: If installing Saunum Air Perfect into an EpicSauna pre-manufactured solid timber kit:
- Floor-Standing Base: The weight of the heater rests on the heavy-duty 1.5"+ solid cedar or spruce floor timbers.
- Upper Wall Anti-Tip Bracket: The top of the circulation duct includes a wall-securing bracket that screws directly into the solid timber wall staves using the supplied lag screws. No cedar cladding anchors or internal stud blocking are required.
5. Control System Architecture (Saunum AirIQ Touchscreen)
[Main Service Distribution Panel]
240V 2-Pole Breaker (40A or 50A)
|
v (Line In: 2 Hots + Ground, Copper)
[Saunum AirIQ Power Contactor Module] <==== (Low-Voltage Sensor Wire) ====> [Temperature Sensor w/ Safety Cutoff]
| (Over heater ceiling per manual)
|
+==== (Data Cable) ====> [AirIQ Touchscreen Control Panel]
| (Mounted outside sauna room or in dressing room)
v (Load Out: Terminals U, V, Ground + Fan Control Cables)
[Saunum Air Perfect Terminal Chamber]
- Heating Element Terminals: L1, L2 + Ground
- Air Equalizer Fan Terminals: Fan Motor Control Leads
- Himalayan Salt Crystal Chamber6. Sizing Formula & Sauna Kit Verification
-
Formula:
Room Volume (cu. ft.) + (3.3 cu. ft. × Sq. Ft. Uninsulated Glass/Tile). - Kit Compatibility:
- Air Perfect 7 (210–350 cu. ft.): Sized for 4–6 person custom saunas and outdoor cabins.
- Air Perfect 10 (318–565 cu. ft.): Large custom timber saunas, high-occupancy residential spa rooms.
Frequently Asked Questions (Electrician & Rough-In Knowledge Base)
What makes the Saunum Air Perfect different from the standard Saunum Air?
The Air Perfect is specifically engineered for integrated, behind-bench or semi-recessed installations. While the standard Saunum Air is an exposed pillar heater, the Air Perfect hides behind the benches with sleek flush air grilles for a minimalist, clean aesthetic.
What breaker size is needed for Saunum Air Perfect 10?
The Air Perfect 10 draws 41.25 Amps at 240V. Per the user manual and NEC rules, it requires an 8 AWG copper wire and a 50 Amp 2-pole circuit breaker.
---
8. Official Manual Audit & Compliance Verification
| Parameter / Directive | Manual Sourced Value | Verified Manual Location | Audit Status |
|---|---|---|---|
| Air Perfect 7 Electrical Data | 7.0 kW, 28.75A, 40A Breaker, 8 AWG | Page 4, Table 1 & IDM Col 28-34 | AUDITED & VERIFIED |
| Air Perfect 10 Electrical Data | 10.0 kW, 41.25A, 50A Breaker, 8 AWG | Page 4, Table 1 & IDM Col 28-34 | AUDITED & VERIFIED |
| Side Wall Clearance | Min. 4.0 in (100 mm) | Page 3, Safety Clearances | AUDITED & VERIFIED |
| Rear Wall Clearance | Min. 2.0 in (50 mm) | Page 3, Safety Clearances | AUDITED & VERIFIED |
| Ceiling Clearance | Min. 4.0 in (100 mm) above duct | Page 3, Safety Clearances | AUDITED & VERIFIED |
| Stone Quantity | 200–230 lbs (90–105 kg / 5–6 boxes) | Page 4 & IDM Col 36 | AUDITED & VERIFIED |
| Conductor Rating | Copper Only, Min 90°C THHN | Page 4, Wiring Instructions | AUDITED & VERIFIED |
| Mounting Style | Floor-standing with wall anchoring | Page 3, Installation Section | AUDITED & VERIFIED |
