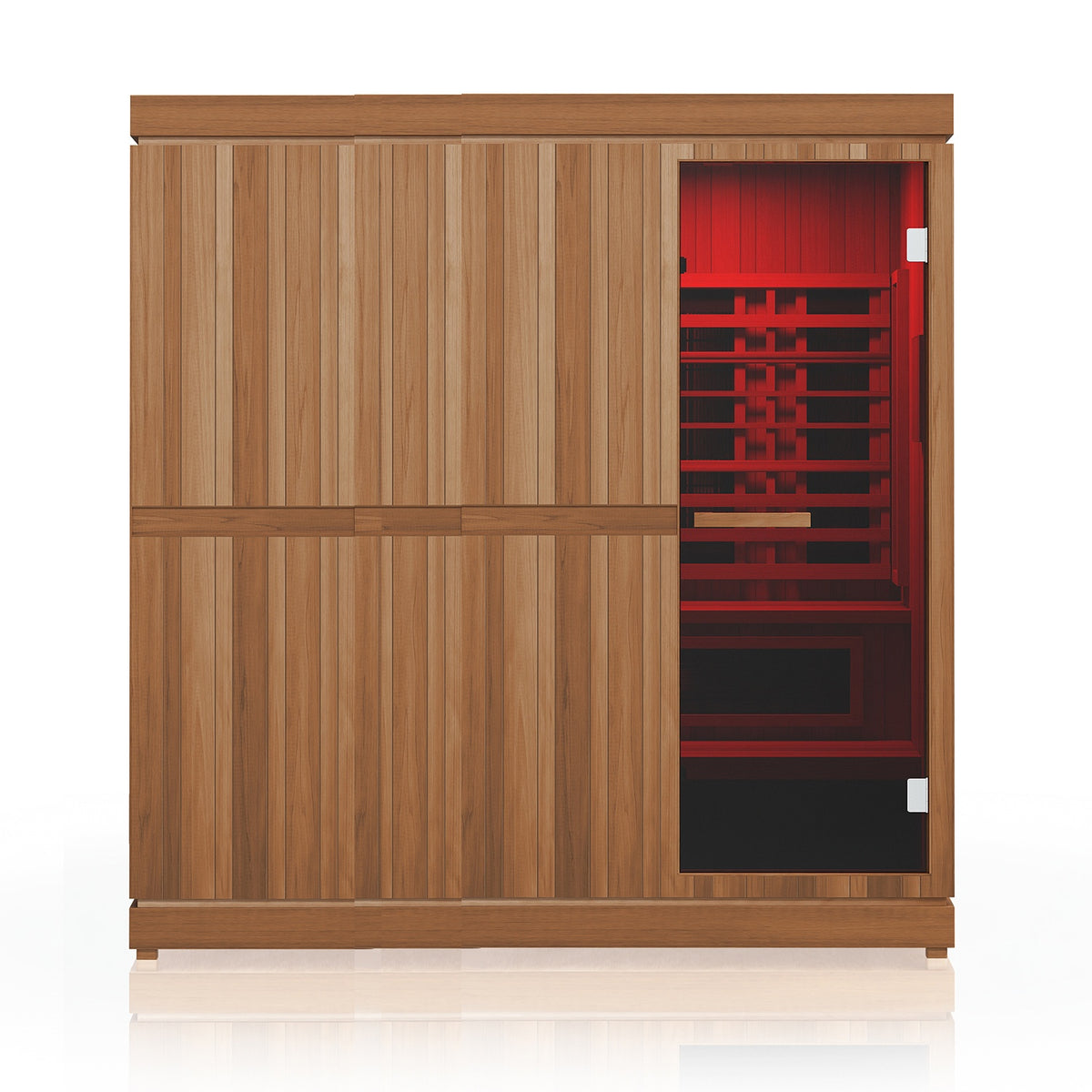

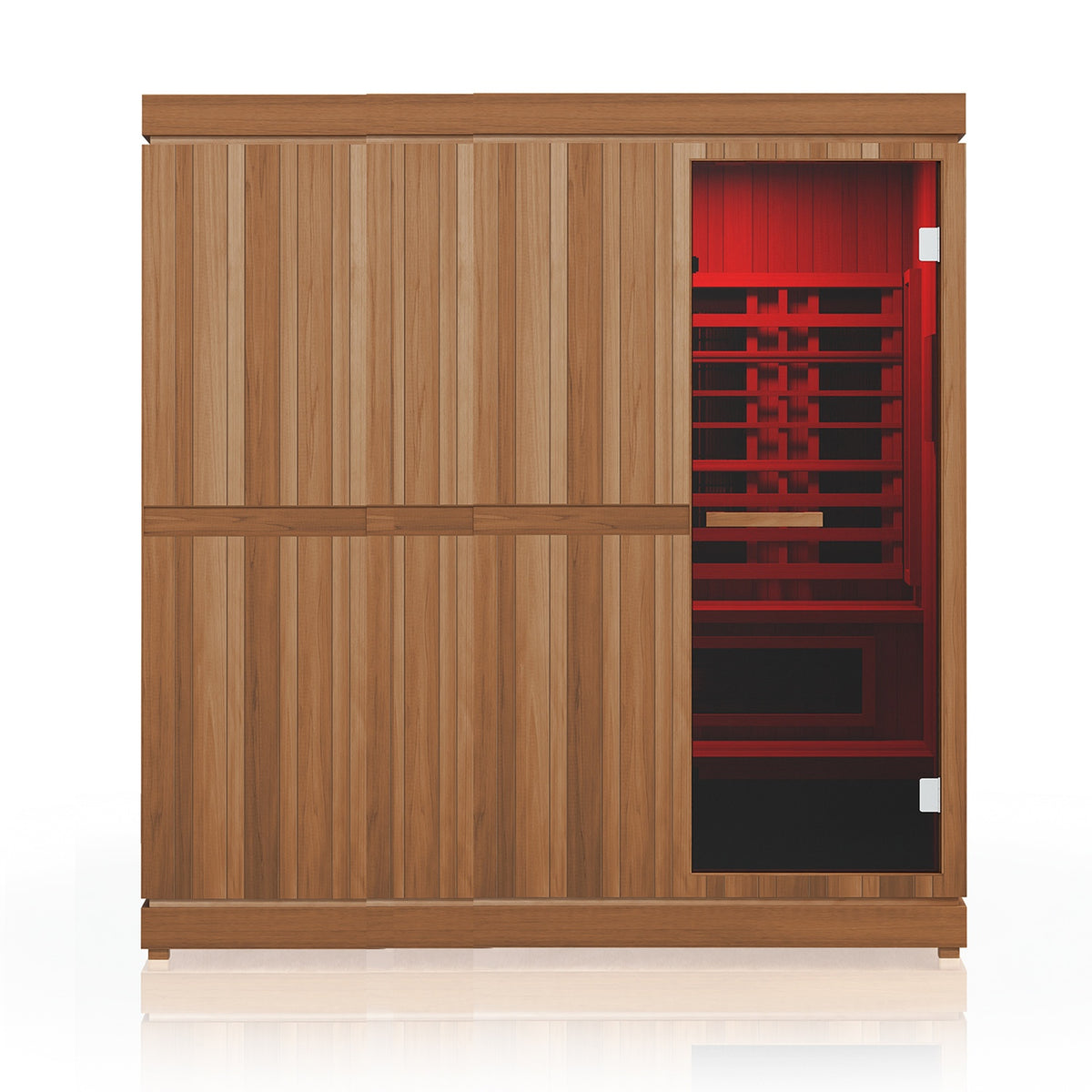

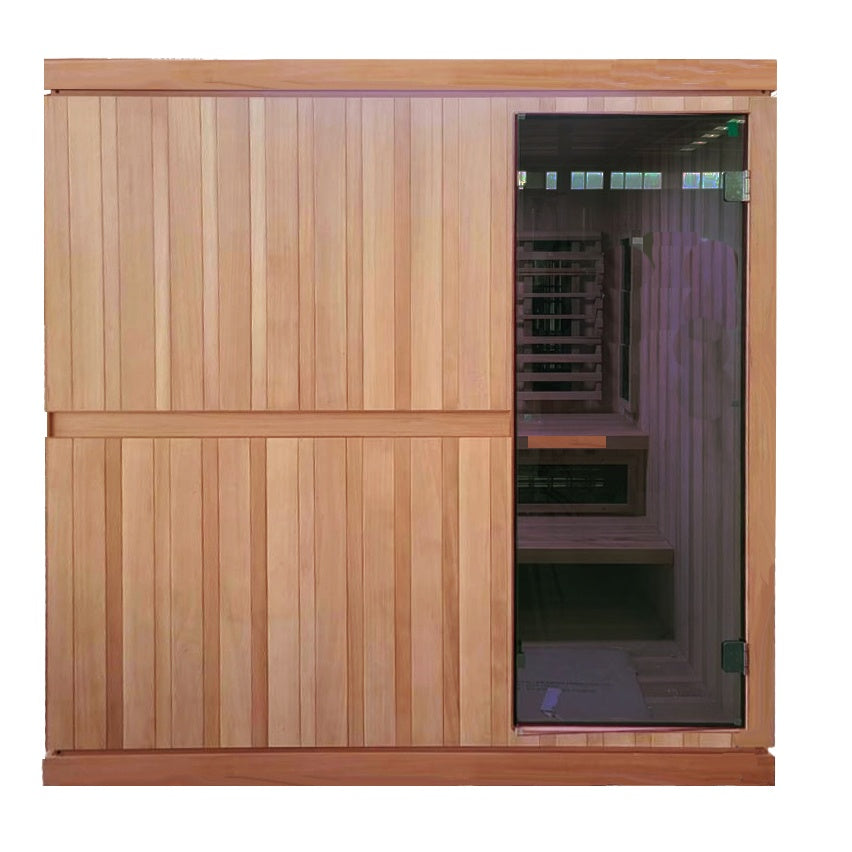

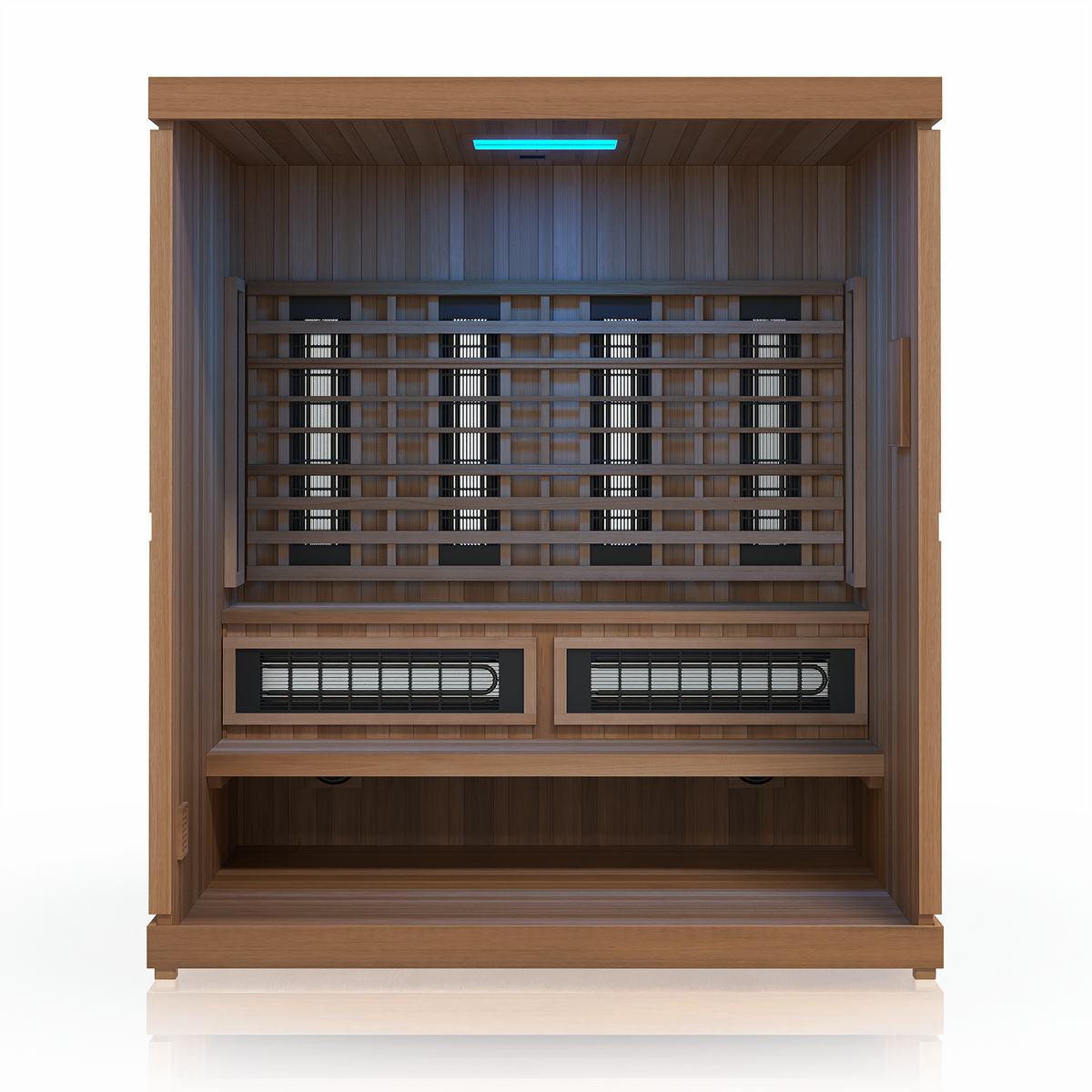

Finnmark FD-5 Trinity XL 4-Person Infra-Steam Combination Sauna
Traditional 240V Finnish rock heater for radiant steam and heat
Custom-tailored stain-resistant performance fabric cushion
Canadian Red Cedar ergonomic S-shape backrest
Financing options available at checkout
Architectural Details & Build Quality
The Trinity Combination Sauna is the only sauna available that combines Finnmark’s UL listed Spectrum Plus infrared heaters combined with a traditional sauna heater that uses vulcanite sauna stones to radiate and even heat and allow you to splash a ladle of water onto the rocks for steam. True medical grade red light therapy rounds out this multi-dimensional home wellness system.
Don’t compromise! Finnmark’s FD-5 Trinity is the only combination sauna with true UL listed infrared heater panels together with a traditional sauna heater. Furthermore, the IR panels, red light therapy. Get all the benefits of infrared combined with traditional rocks with steam.
Get hot fast! The only IR heaters that have passed the rigorous tests from Underwriter Laboratories used in tandem with a traditional steam sauna stove. Short wave far-infrared penetrates muscles, joints, and makes you sweat 25 times more than carbon panel heaters.
The traditional 4.5kW sauna heater lets you splash some water onto the rocks for a luxurious steam sauna experience. Reap the benefits and the intensity only offered by a steam sauna.
The Trinity Combination Sauna is the only sauna available that combines Finnmark’s UL listed Spectrum Plus infrared heaters combined with a traditional sauna heater that uses vulcanite sauna stones to radiate and even heat and allow you to splash a ladle of water onto the rocks for steam. True medical grade red light therapy rounds out this multi-dimensional home wellness system.
Don’t compromise! Finnmark’s FD-5 Trinity is the only combination sauna with true UL listed infrared heater panels together with a traditional sauna heater. Furthermore, the IR panels, red light therapy. Get all the benefits of infrared combined with traditional rocks with steam.
Get hot fast! The only IR heaters that have passed the rigorous tests from Underwriter Laboratories used in tandem with a traditional steam sauna stove. Short wave far-infrared penetrates muscles, joints, and makes you sweat 25 times more than carbon panel heaters.
The traditional 4.5kW sauna heater lets you splash some water onto the rocks for a luxurious steam sauna experience. Reap the benefits and the intensity only offered by a steam sauna.
Red light therapy is a type of phototherapy that uses low-level light wavelengths to penetrate the skin and stimulate the production of collagen and other proteins, which can lead to numerous potential health benefits. It’s a perfect enhancement to your sauna wellness ritual.The Trinity Combination Sauna is the only sauna available that combines Finnmark’s UL listed Spectrum Plus infrared heaters combined with a traditional sauna heater that uses vulcanite sauna stones to radiate and even heat and allow you to splash a ladle of water onto the rocks for steam. True medical grade red light therapy rounds out this multi-dimensional home wellness system.
Don’t compromise! Finnmark’s FD-5 Trinity is the only combination sauna with true UL listed infrared heater panels together with a traditional sauna heater. Furthermore, the IR panels, red light therapy. Get all the benefits of infrared combined with traditional rocks with steam.
Get hot fast! The only IR heaters that have passed the rigorous tests from Underwriter Laboratories used in tandem with a traditional steam sauna stove. Short wave far-infrared penetrates muscles, joints, and makes you sweat 25 times more than carbon panel heaters.
The traditional 4.5kW sauna heater lets you splash some water onto the rocks for a luxurious steam sauna experience. Reap the benefits and the intensity only offered by a steam sauna.
Red light therapy is a type of phototherapy that uses low-level light wavelengths to penetrate the skin and stimulate the production of collagen and other proteins, which can lead to numerous potential health benefits. It’s a perfect enhancement to your sauna wellness ritual.
Features
- Spectrum Plus™ UL Listed short wave infrared heaters for deep penetrating heat, up to 25x more than standard carbon panel heaters.

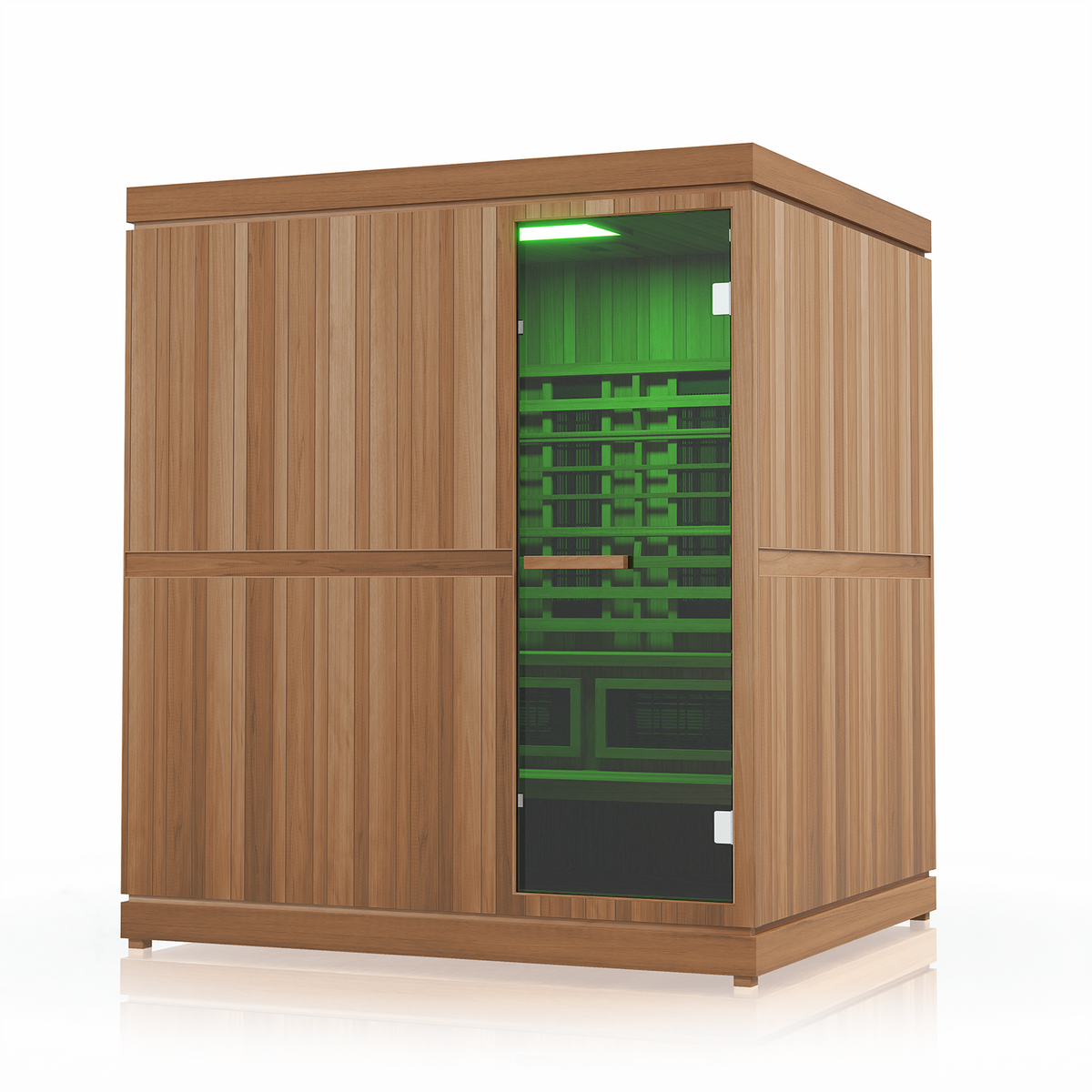

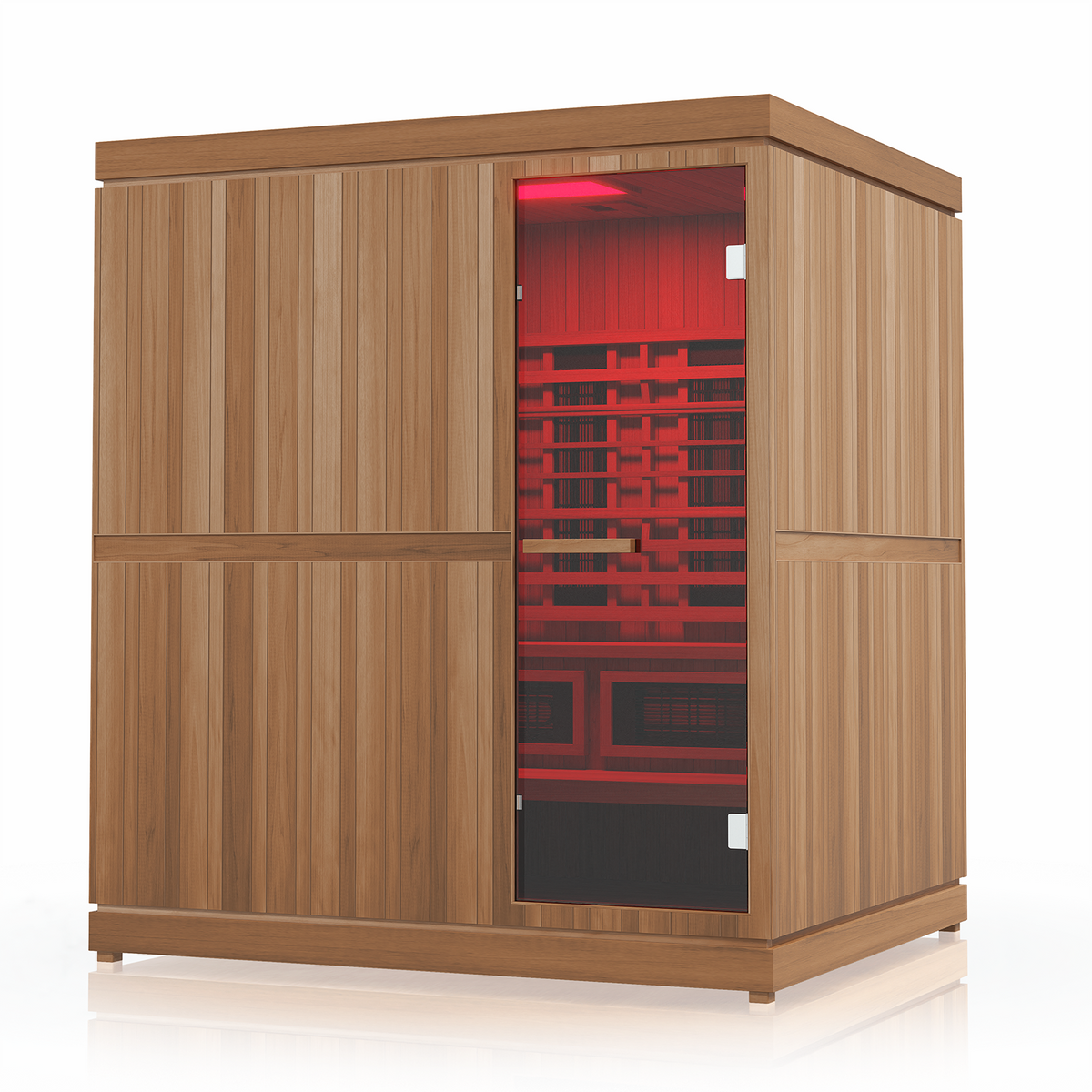

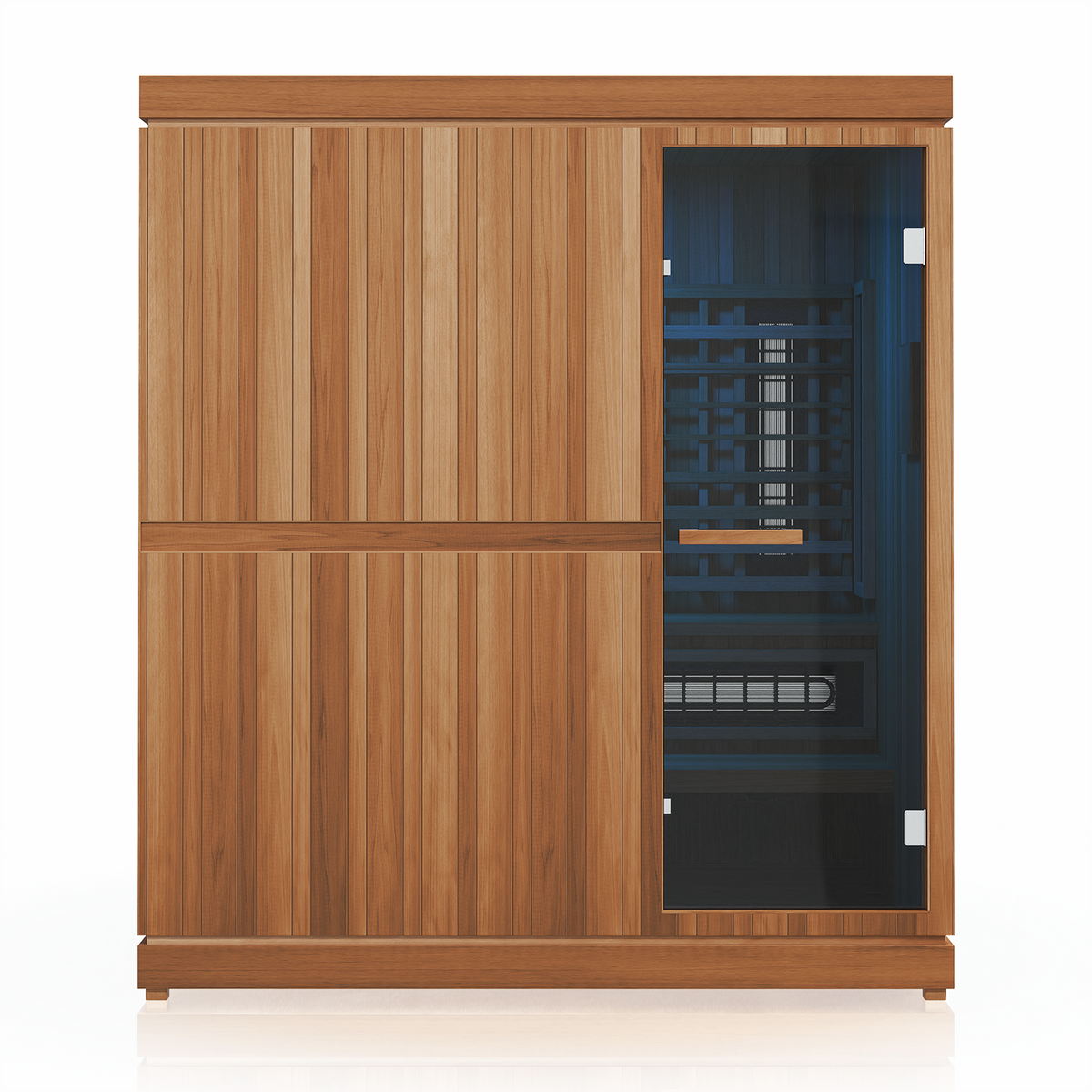

- Spectrum Red Light™ Therapy. 192 Diode medical grade LED panel capable of producing highly beneficial 650nm of red light therapy combined with chromotherapy for those days you need a little love.
- Antimicrobial Western Canadian cedar interior that protects against mold, bacteria and fungus.
- Thermal Plus™ Aspen exterior that will never rot, warp, decay or chip. Making FinnMark Designs full spectrum infrared saunas one of the healthiest and longest lasting saunas on the market.
- 3-IN-ONE Combination. Compromise no more. Introducing the only combination sauna with true UL listed infrared heaters combined with a traditional heater that produces high heat steam. Get all the benefits of infrared combined with traditional rocks with steam all while soaking in the benefits of a medical grade Red light therapy LED panel.
- Built-in LCD touchscreen controller with Bluetooth audio.
- Audio with 6" HiFi marine grade speakers, 8mm tempered glass for the ultimate thermal retention.

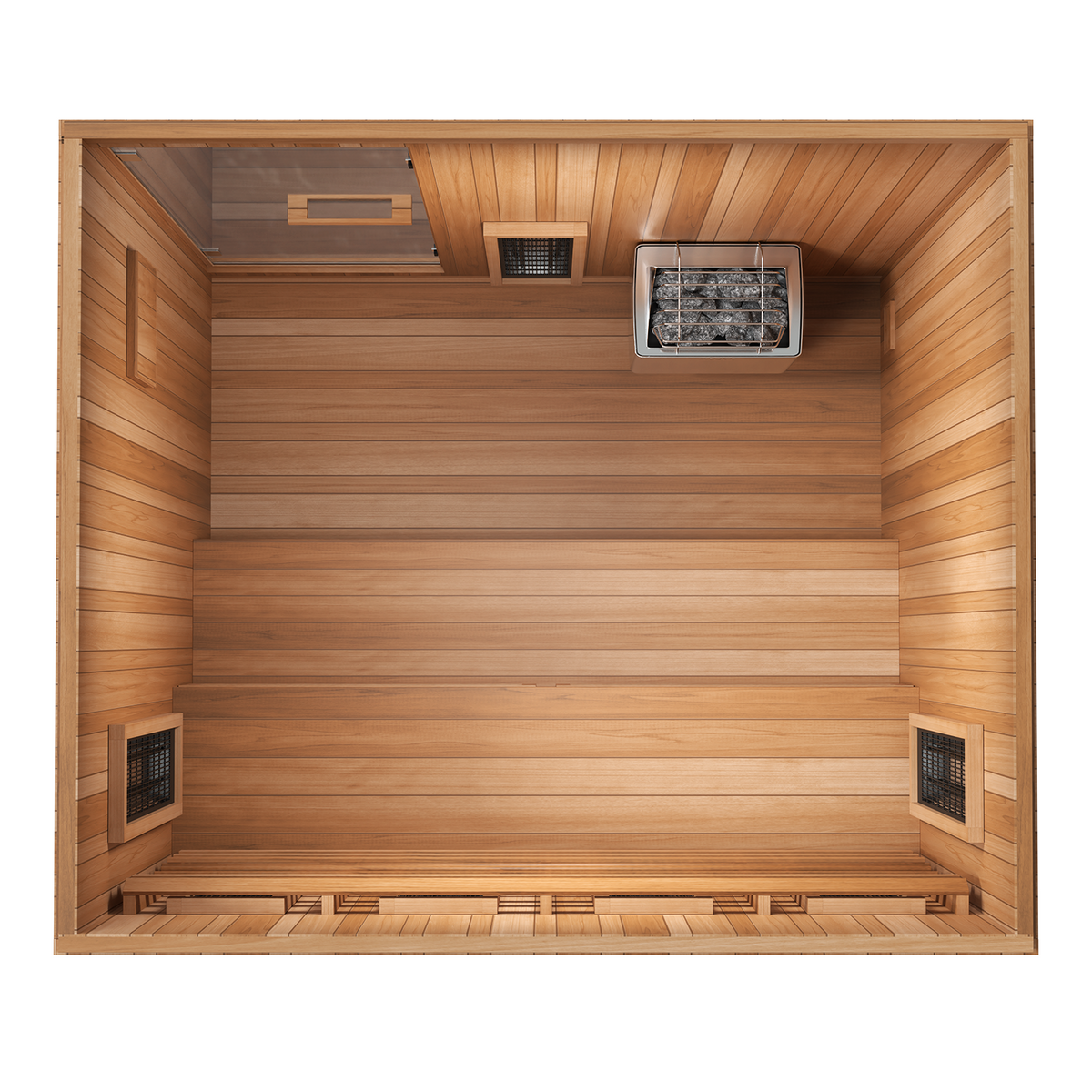

- Extra large two-tier bench system
- Low EMF sauna tested by a NASA award winning testing facility.
- High Emissivity infrared heaters

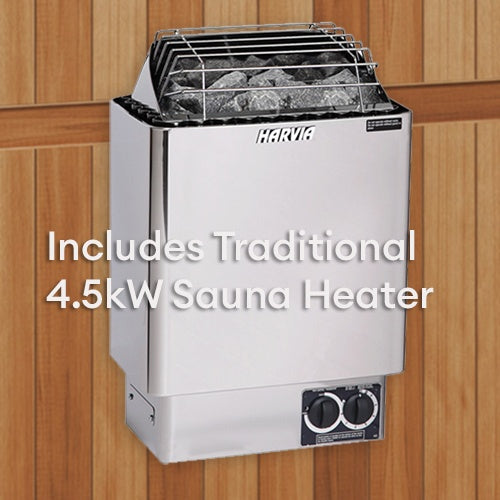

- Harvia KIP Series 4.5KW Sauna Heater
- Wall-mounted
- Stainless steel construction
- 4.5kW
- For sauna rooms from 100 to 210 cu. ft.
- Requires a minimum of 50lbs of stones (1 box-AC3000)
- o Please note that each natural stone is unique in shape and size. We recommend purchasing an additional box of sauna stones to allow you to choose the highest quality of stone for fit, form, and function (Additional freight charges will apply).
- Requires wall-mounted time/temperature control
- Available in 240V/1PH operation or 208V/3Ph operation
- Industrial grade, serviceable heating elements
- Exceptionally large rock capacity
- UL listed
- Direct rock-to-heating element contact
- Designed, engineered, and made in Finland
- Dimensions: 16"W (406mm) x 11"D (279mm) x 24"H (609mm)
- 2-Year Warranty (Consumer Use)
- Manufacturer's Note: Sauna heater stones are significant to the unit's safety. In order for the warranty to remain valid, the user is responsible for proper maintenance.
Package Contents
- Bottom Panel
- Top Panel
- Back Panel
- Front Panel
- Left Panel
- Right Panel
- Glass Door
- Bench Support
- Bench Top
- Heater Cable
- Floor Cable
- Screws
- Power Supply Unit
- Power Cable
- Interior Heater Connections with Wood Cover
- Door Handle (2 Screws)
- Infrared Sauna Heater Panels
- Harvia KIP Series 4.5kW Sauna Heater
- 1 Box of the Harvia AC3000 0-10cm sauna stones (29 lbs)
- o Please note that each natural stone is unique in shape and size. We recommend purchasing an additional box of sauna stones to allow you to choose the highest quality of stone for fit, form, and function (Additional freight charges will apply).
- Medical Grade LED Red light therapy at 650nm plus color chromotherapy
- V2 LCD Controller 5" touchscreen controller with Bluetooth
- ETL Certification
- Limited Warranty
Wellness Benefits
- Benefits of Infrared
- The technology of the Spectrum Plus incoloy heaters warms your core body temperature, producing a cleaner, healthier sweat while lowering blood pressure, and maintaining heart health.
- The natural heat produced by the Spectrum Plus heaters is designed to achieve a more controlled hot climate much like a traditional sauna without the unbearable heat temperatures. This deeper penetration through sweating goes beyond the muscle and fat rather than a traditional or hot air sauna. As a result, you're able to work up the best possible sweat in the least amount of time.
- Spectrum Plus heaters remove 17% more toxins such as cholesterol, fat-soluble toxins, toxic heavy metals, sulfuric acid, sodium, ammonia and uric acid.
- Full Spectrum Sauna combination of long-wave Spectrum Carbon 360 infrared panels with UL-listed short-wave Spectrum Plus™ infrared panels. This combination provides higher temperatures, full body coverage, deeper penetration, and better experience than any other sauna.
- Reap the benefits of a more natural pain relief remedy with every infrared sauna session.
- Athletes can appreciate a faster muscle recovery with increased blood flow to the muscles, delivering more concentrated oxygen and creating more energy to heal.
Specifications
- Construction Material: Wood
- Interior Materials: Western Red Cedar
- Exterior Materials: Canadian Aspen
- Door Dimensions: 67.875" x 23.625" (172.40 cm x 60 cm)
- Glass Thickness: 8mm (0.8 cm) W/Gasket
- Product Weight: 575 lbs (260.81 kg)
- Exterior Product Length: 48" (121.9 cm)
- Exterior Product Width / Depth: 72" (182.8 cm)
- Exterior Product Height: 83" (210.8 cm)
- Shipping Weight: 654 lbs (296.64 kg)
- Traditional Heater kW: 4.5KW
- Infrared kW: 2.7KW
- Infrared Watts: 2700
- Infrared Volts: 240
- Infrared Amps: 18.8
- Room Volume (Cu. Ft.): 130 (ft³)
- Traditional Heater Maximum Temperature Settings: 190° F
- Infrared Maximum Temperature Settings: 170° F
- Warranty: 10-Year Limited Warranty (Cabin) / Lifetime (Infrared Elements)
- Certifications: Certifications
Dimensions & Engineering Overview
Shipping & Freight Delivery
Due to the size, weight, and solid timber craftsmanship of this sauna, it ships securely in an oversized protective wooden crate via specialized Less-Than-Truckload (LTL) freight.
Delivered to the end of your driveway or curbside threshold with scheduled hydraulic liftgate offloading.
The freight carrier contacts you 24–48 hours in advance to schedule a dedicated delivery appointment.
Complimentary Curbside Freight on contiguous US saunas bundled with a heater ($3,500+). Standalone shells without a heater include a $495 direct factory freight surcharge.
Inspect outer crate upon arrival. Endorse the BOL with 'DAMAGED - SUBJECT TO INSPECTION' if any carton or wood distress is visible.
All heavy LTL freight shipments undergo a mandatory address and route clearance review prior to dispatch. Our logistics team verifies 53-ft commercial semi-truck accessibility, municipal roadway clearances, and turning space. Deliveries requiring island ferry transport, unpaved terrain navigation, low wire clearance shuttles, or extreme mountain switchbacks are subject to carrier-assessed accessorial surcharges or carrier freight terminal will-call prior to factory release.
Note: Standard LTL shipping is curbside delivery to the driveway apron or street threshold. Freight drivers do not unpack crates or move components into backyards, garages, or indoor rooms; customers are responsible for moving contents from curbside to the build site.
Manufacturer Warranty & Guarantee
Epic Sauna is an authorized direct retail partner for Finnmark. Your purchase includes 100% genuine factory-certified merchandise with complete manufacturer warranty coverage and dedicated parts support.
Covered under official manufacturer warranty terms against defects in materials and workmanship.
Returns & Cancellations
Eligible items in brand-new, uninstalled condition with complete original packaging, manuals, and pallet/crate strapping may be returned within 30 days of delivery.
Due to specialized pallet/crate packaging, technical factory inspection, and re-warehousing protocols, discretionary returns are subject to a 15% to 20% manufacturer restocking fee.
Order Cancellations Prior to Dispatch: In-stock heaters and accessories may be cancelled at zero penalty prior to warehouse departure. For made-to-order saunas, cancellations within 48 hours of order placement receive a 100% refund; cancellations requested after timber machining has commenced are subject to a 10% material handling fee if production cannot be paused.
Return Freight & Discretionary Returns: For customer-initiated returns (buyer's remorse, incorrect sizing, or site condition changes), the customer is responsible for actual return freight shipping costs. If requested, our logistics team can coordinate return freight booking under our negotiated corporate volume carrier rates and deduct the cost from your net refund.
Zero-Fee Transit Damage Guarantee: Restocking fees never apply to items damaged during transit or verified manufacturer defects. If damage is noted upon delivery on the carrier's Bill of Lading (BOL), notify support@epicsauna.com with photos within 48 hours and we will dispatch replacement components or assemblies at 100% factory expense.
Non-Returnable Items: Saunas, heaters, or electronic controls that have been assembled, wired, installed, or fired cannot be returned due to safety and electrical certification standards.
Specifications & Downloads
Solid 1.5"+ Timber Construction (No Stud Blocking Required): Precision-milled from solid 1.5"+ (38mm–44mm) architectural timber logs, our sauna walls provide solid structural backing across every square inch. You can fasten your electric heater mounting brackets directly into the solid timber logs with complete load integrity—no drywall cutting, stud finding, or internal wood blocking is required.
Planning dedicated 240V supply circuit conduits, breaker sizing, or external disconnect switches? Explore our master electrical rough-in guide for wire gauge charts and licensed electrician checklists.
